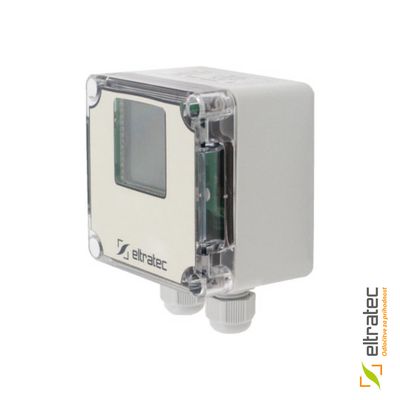

Eltratec - Model TTP 320 -Temperature Transmitter

Temperature measurements of atmospheric and surrounding air with 4-20 mA output and LCD Display

Power supply: 9 to 27VDC (typical 24 VDC) current loop - twowire connection, reverse polarity protection

Measuring range: on order (max. -50°C to + 50°C with internal sensor, -99 do +400 °C with external sensor), programmable measuring range

Output signal: current 4-20mA

LCD Display for displaying measuring value, current and settings

Resistance of the current loop (at 24VDC power supply): max. 750 Ohm

Ambient temperature : -50 to +50°C

Cable connection: PG 9 cable gland

Protection level: IP 65

Housing material: ABS
