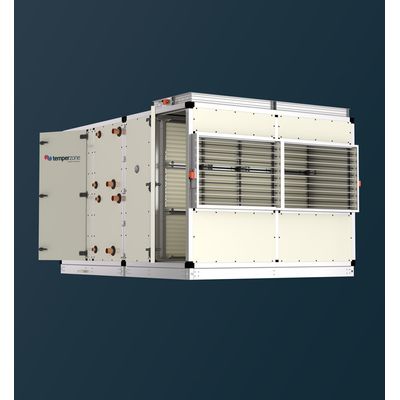

Clever MT Range of Standardised Air Handling Units

The MT Air Handling series offer the same high quality as the Clever MC Series with the added benefit of standardisation.

Temperzone air handling units have been leading the market with the highest quality, most customisable air handlers available. The MT standardised air handling unit range offers the same high quality features you’ve come to expect while giving you the certainty to aid quick and easy HVAC system design, and the flexibility to rely on shorter lead times and optimum savings.

Standardied AHU Range

Available with:

• 4, 6 & 8 Row Cooling Coil
• 1 & 2 Row Heating Coil
• 750 - 15,000 l/s nominal airflow

Features

• Full Aluminium Design
• Double Skin + Thermal Break Panels
• High Efficiency EC Plug Fans
• Epoxy Coated Coils
• Ebox Wiring Integration
• EL100 Opposed Blade Dampers
• Air Filtration options including G4 rated panel filters, F7 filter bags and F9 cartidge filters

Standard Pre-Engineered Design

MT Air Handling units offer pre-engineered standardised options that allow you to configure your unit to suit your requirements.

• Standard or Opposite Hand (all piping, access doors, drainage, gauges and electrical)
• Horizontal or Vertical Supply Air
• Eleven combinations available for chilled water and/or hot water coils
• Horizontal or Vertical Return Air Plenum
• Return Air / Outside Air Mixing Dampers

Standard Accessory Options

The MT AHU range comes with standardised accessory options.

• Optional filter pressure drop, Magnahelic gauge
• Internal lighting
• Inspection windows
• Filters are sold separately (G4, F7 and F9)

Full Aluminum Design

MT Air Handling units are of superior design with full aluminium construction for exceptional corrosion protection and supierior lighter weight flexibility.

• Anodised aluminium framework
• Outer and inner marine grade aluminium pre-painted panels
• Anodised aluminium base channel

Tropical Profile + Thermal Break

MT Air Handling units are of superior design with exceptional performing thermal barrier properties.

Tropical Profile, Thermal Break: T2 / TB2 Tropical 65 x 50

• Thermal break 65mm profile & 50mm panels
• Nylon corner node
• Anodised profiles and base channel

Double skin panels with injected foam infill for superior insulation.

• External marine grade 5005 aluminium linings, PVC 50mm separator
• Injected polyurethane foam insulation, >45kg/m3
• Panel thermal conductivity <0.024 W(m-K)

Features

• Exceptional thermal performance
• Tropical system to prevent condensation in high humidity locations or with very low supply air temperature

Internal Doors

• Outwards opening doors with multiple nylon handles for airtight seal
• Door handles have internal handles
• Lockable fan door handle for added safety
• Mechanically fixed aluminium mesh door guard

Corrosion Resistant Sloping Drain Trays

• Moulded ABS tray with PVC condensate connection
• 2 way slope to single point - zero water ponding

MT Air Handling units utilise energy-efficient, reliable componentry to ensure the delivery of superior performance.

• Multiple coil combinations available using 1, 2 and 4 row coils for chilled water or LTHW applications options
• Backward curve centrifugal impeller EC Motor
• EBox wiring integration as a standard
• CPG-AV Controller - Pressure and volume
• CTG-AV Controller - Temperature

Standard MT Air Handling units offer high specification filtration for clean hygienic, indoor air. ISO 16890 standard certified media

G4 Panel Filter

• 46mm aluminium panel
• Washable media
• 1.2 m² synthetic media

F7 Bag Filter

• 600mm 8 pocket
• 25mm header
• 5.7 m² synthetic media

F9 Compact Final Filter

• 292mm cartridge
• 25mm header
• 18.8 m² glass fibre media
