Uses
Temporary Cone and Basket Strainers are used for start up of new or revamped piping systems. They are designed to provide inexpensive protection for costly valves, pumps, meters, and other mechanical equipment
Materials
Standard temporary strainer materials are stainless steel and carbon steel; however, other materials are also available. Contact factory.
Perforation/Mesh
Diameter holes of 1/8" on 3/16"centers is the standard perforation, but most sizes/varieties are available. For mesh lined strainers, flow direction must be specified.

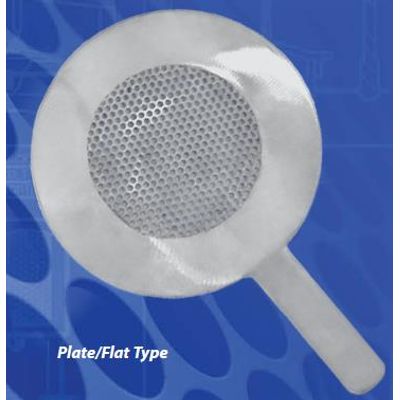

Plate Design (Flat Type)
Illustration represents Titan FCte Temporary Plate Strainers Titan Kfc fabricated products are made to each customer`s unique specifications Dimensions-materials` and all other product details referenced in this literature are general in nature Some options may not be available in all sizes andbr models Titan FCI reserves the right to make design and specification changes to improve the products without prior notification For exact product specifications` please consult the Titan FCI factory and request certified engineering drawings.
Illustrations represent Titan FCI’s fabricated PS 17. Titan’s fabricated products are made to each customer’s unique specifications. Dimensions, materials, illustrations, and all other product details referenced in this literature are general in nature. All pictures shown are for illustrative purposes only. Actual product may vary due to product enhancement. Some options may not be available in all sizes and/or models. Titan
FCI reserves the right to make design and specification changes to improve the products without prior notifi cation. For exact product specifications, please consult the Titan FCI factory and request certified engineering drawings.
