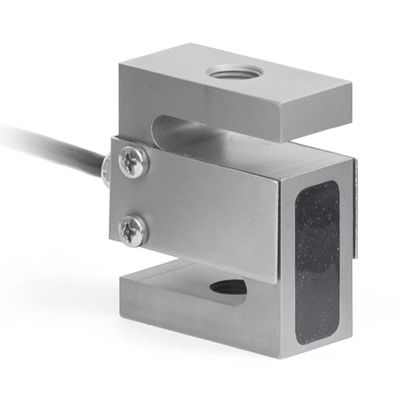

Mark-10 - Model R01 Series -Tension and Compression Force Sensors
The Series R01 Tension and Compression Force Sensors by Mark-10 are engineered for a wide array of testing applications across diverse industries. Featuring a robust S-Beam design, these sensors are equipped with threaded holes on two sides for versatile configurations. With capacities ranging from 50 to 10,000 lbF (250 N to 50 kN), these sensors are adaptable for various testing needs. A notable feature is the Plug & Test® technology, which ensures seamless compatibility with Mark-10 indicators by allowing interchangeable sensors to connect effortlessly. The calibration and configuration data are stored within a smart connector, ensuring easy setup and reliable performance. Gold-plated spring contacts provide long-lasting and secure connections. Furthermore, the sensors can be used with different Mark-10 indicators, each offering distinct levels of accuracy to suit specific requirements. The Series R01 is ideal for precise measurement in both tension and compression testing scenarios.
Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations.
Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology.
Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
- Member of the Plug & Test® family of interchangeable sensors and indicators
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration with data is included.
A combined certificate for the sensor and an indicator is available at time of order at no charge, part no. CERT-SI. - Warranty: 3 years
- Accuracy:
±0.15% of full scale + indicator - Weight:
MR01-50 – MR01-300: 1 lb [0.5 kg]
MR01-500 – MR01-1000: 2 lb [0.9 kg]
MR01-2000 – MR01-10000: 3 lb [1.4 kg] - Shipping weight:
MR01-50 – MR01-300: 2 lb [0.9 kg]
MR01-500 – MR01-1000: 3 lb [1.4 kg]
MR01-2000 – MR01-10000: 4 lb [1.8 kg] - Conformance: CE, UKCA
- HS code:
MR01 (all models): 9024900000
AC1018, AC1062: 9024800000 - ECCN
EAR99 - Country of origin:
USA
