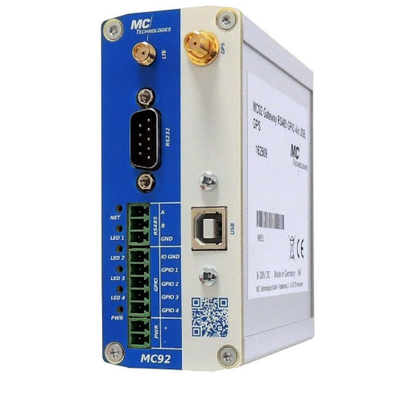

MC TechnologiesModel MC92 -Terminal

SHARE

The 4G Cat1 LTE data terminal with integrated Quectel EC21-E module, metal housing and industrial platform offers a robust solution for industrial data communication.

Most popular related searches

The MC92 terminal has the following features

  1. 4G Cat1 LTE connectivity: The data terminal supports 4G Cat1 LTE technology to enable reliable and fast wireless data transmission.
  2. Integrated Quectel EC21-E module: The data terminal contains the Quectel EC21-E module, which enables stable and reliable mobile communication. The module supports several frequency bands and standards.
  3. Metal housing: The terminal is housed in a robust metal housing that offers excellent protection against external influences. This makes the device durable and resistant in industrial environments
  4. Industrial platform: The data terminal is designed for use in an industrial environment. It offers reliability, resilience and robust performance to meet the demands of industrial data communication.

We recommend the M2MGate portal solution for VPN remote access, update management, device configurations and device management.

and the M2M SIM from wherever SIM

  • LTE Cat1 (4G): Band 1,3,5,7,8 and 20
  • HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all bands with diversity
  • GSM/GPRS/EDGE (2G): Band 3.8
  • Dimensions (B x H x T): 44 x 105 x 84 mm
  • Weight: approx. 270 g
  • Supply voltage: 8 to 30V DC
  • Operation temperature: -20°C to +60°C
  • Housing: Aluminum
  • Protection class IP40
  • Mounting: Top-hat rail mounting, tabletop
Interfaces:
  • Power
  • RS-232
  • Mini SIM
  • SMA antenna connector
