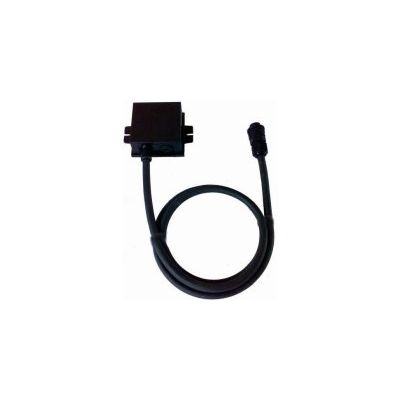

Solar Defender - Model ALM-6001 -Terminal Optical Sensor

Supply and installation of Terminal Optical Sensor Solar Defender, as ALM-6000 but without the cable for the connection at the next sensor. Certifications CE, REACH, RoHS Compliant. Included the necessary electrical and signal connections, materials and charges, at workmanlike manner. MARSS ALM-6001 model.

It is based on an innovative system of Optical Sensors addressed and applied directly on each photovoltaic panel to be alarmed. When an optical change, a tear from the installation surface, or any cable tampering happen, an alarm is generated and communicated to a system of concentrator modules. These ones include the double operation mode stand-alone and on Bus and manage the alarm in accordance with the mode pre-selected by the user.

The system borns from a Patent Marss

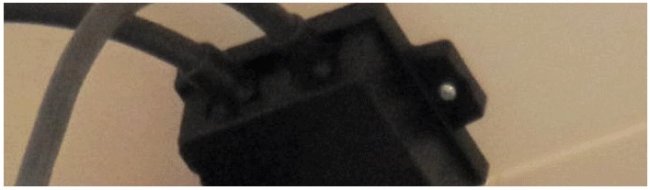

Due to its features, it can be installed without the use of special tools: the special frame with optical cylinder and two cables with bayonet connection, makes the installation quick and easy. It can be installed on any type of panels and plant, existing or under construction, with no architectural limits of any kind.

It does not require masonry works, excavation or pipe.

• Detects the single panel in a simple and safe way, thanks to the communication protocol owner Marss .
• Can be installed on any type of panel and PV system.
• Modular system, integrable and interfaceble.
• Double operation mode selectable by the user.
• Function  "Cantiere Protetto".
• High immunity at false alarms.
• Patent Marss.
