Teryair - Model SDP 25 ALX -Air Operated Diaphragm Pump
Teryair aluminium constructed pumps are commonly combined with Neoprene, Nitrile, Santoprene, Hytrel, Viton or PTFE Elastomers. With these elastomers they are ideal for pumping of water and water-based fluids, non-aggressive fluids, oily fluids and fluids having low acidic or alkali concentrations Aluminium Pumps offer a relatively low-cost solution to many pumping applications. For this purpose, the main industries that choose Aluminium pumps are Paints, Marine, Mining, Ceramic and Wastewater/Pollution management.

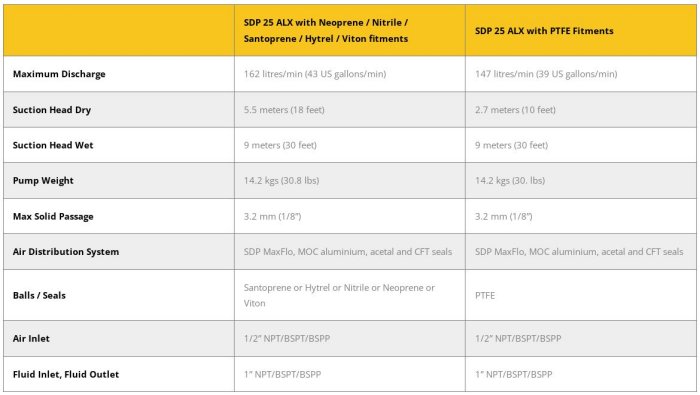

max discharge
0-162 liters/minute
size, material
1″, Aluminium
weight
14.2 kgs
DIAPHRAGM OPTIONS ‘X’
Neoprene
Nitrile
Santoprene
Hytrel
Viton
PTFE
APPROVALS AND CERTIFICATIONS
All Teryair pumps are CE marked and manufactured under an ISO 9001:2015 Quality system by SGS. All Teryair aluminum, Ductile iron, and Stainless Steel pumps are explosion-proof Certified (ATEX).
VERSATILITY
This pump handles Viscous fluids, Slurries, Solid laden fluids, Shear Sensitive fluids very well.
No Priming needed
No Foaming of fluid pumped
No Stall damages
Portable
Submerged operation capable
