Hi-Link - Model HLK-B36 -Test Board Kits

SHARE

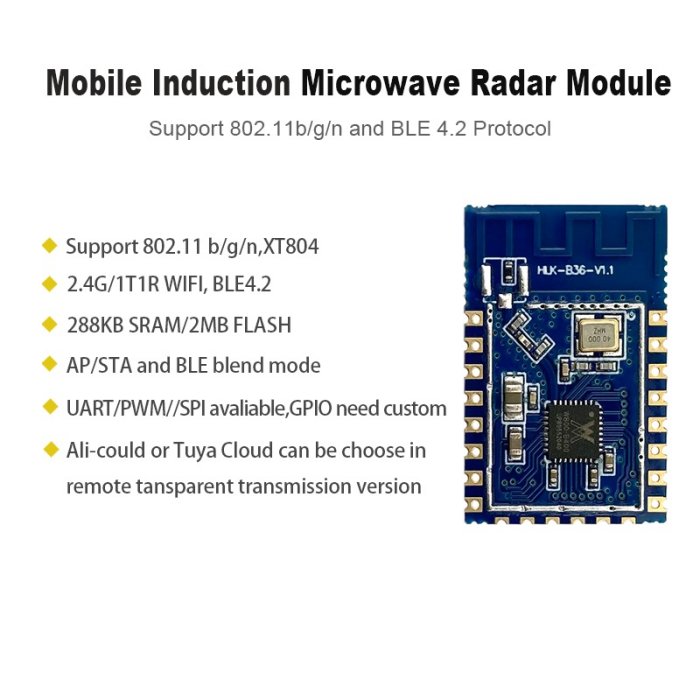

WiFi serial port module B36 bluetooth 4.2 Ali/Tuya remote transparent transmission AP/STA/BLE4.2.

Support 802.11b/g/n standard, integrate XT804, WLAN MAC/Baseband/BLE 4.2
The main frequency supports 240MHz
Built-in 288KB RAM/ 2MB FLASH
Working voltage 3.0-3.6V, typical value 3.3v
2.4G/1T1R wifi, BLE 4.2
Support BLE fast network configuration
Support Station, Soft AP, ? Support 802.11b/g/n standard, HT-40
Support AP, STA and BLE mixed mode
Rich peripheral interfaces, 1*SPI, 2*UART, 5*PWM, 18*GPIO
Widely used in the Internet of Things
Support multiple encryption methods WEP64/128, TKIP, AES, WPA, WPA2, WAPI
