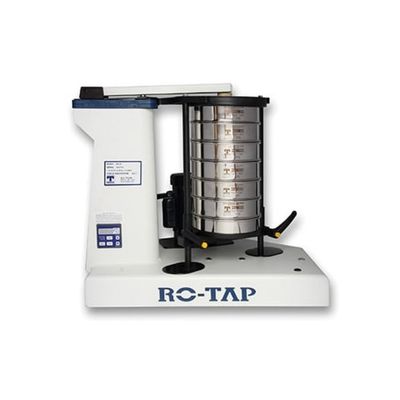

RO-TAP - Model RX-29 -Test Sieve Shaker
The industry standard in test sieve shakers, W.S. Tyler’s RO-TAP has a unique two-dimensional operation: A horizontal, circular motion and a vertical, tapping motion. This special action allows material particles to stratify and “seek” critical openings in the test media. This unit provides the most accurate and consistent particle analysis testing.
Most popular related searches
The RX-29 model is designed for testing with 8" diameter test sieves; the RX-30 model is designed for testing with 12" diameter test sieves.
- Requires minimal maintenance
- Heavy-duty use
- Features 99 minute digital timer/clock, tolerance, 0.1 second
- Each unit is test run and serialized prior to shipment
SPECS : DESCRIPTION
- Testing Applications — RX-29 : 2" down through 635 mesh (20 micron)
- Testing Applications — RX-30 : 4" down through 500 mesh (25 micron)
- Oscillations per Minute : 278±10
- Oscillations Displacement : 1-1/8" x 7/16"
- Taps per Minute : 150±10
