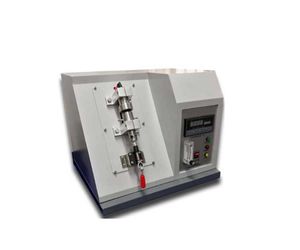

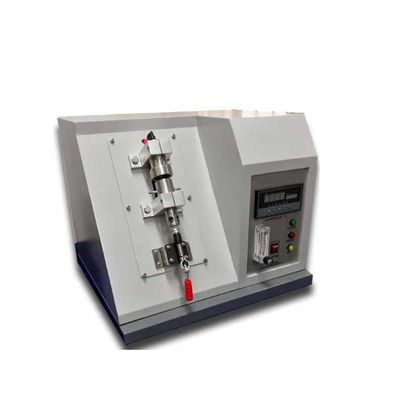

QISNUN - Model PFT-01 -Testeur d'efficacité de filtration de masque

Common name: Particle filtration efficiency tester

Over rate efficiency detection range: 0-99.999%

Accuracy: 1 grade

Excess rate efficiency detection flowmeter range: 10-100L/min

Flowmeter precision:2.5 grade

Sampling frequency:1-9999 times / min

Filtration efficiency particle concentration:20-30mg/m3

Counting median diameter:salt particulate matter(0.075±0.02)μm, oil particulate matter(0.185±0.02)μm

Geometric standard deviation of particle size distribution: salt particulate matter ≤1.86, oil particulate matter ≤1.60

Dynamic detection range: 0.001-100 )mg/m3, precision 1%

Host power supply: 220VAC 50Hz

Host net weight :64 kg

Instrument configuration: host, computer, professional software, aerosol generator, laser dust particle counter, glass rotor flow meter, vacuum pump

Testing principle: The filtering efficiency is measured by continuously penetrating the filtering element with particles of specified concentration and particle size distribution under a certain air flow, and measuring the "loading" filtering efficiency, i.e., simulating the efficiency in the actual use process, when the particles have a certain amount of deposition (dust capacity) on the filtering material.
