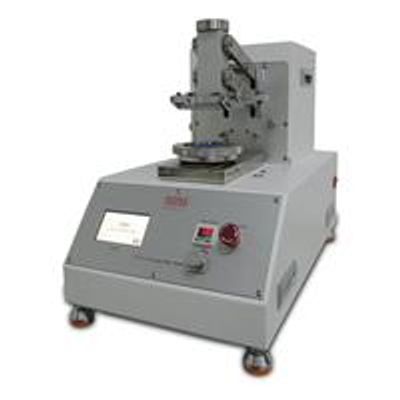

Testex - Model TF213 -Universal Wear Tester
Universal Wear Tester, to determine the wear and abrasion resistance of fabric used in clothing, footwear and industries. This Wear Testing Machine complies with ASTM D3514/D3885/D3886, AATCC 119/120, FTMS 191/5300/5302, etc.
Application
Universal Wear Tester, to determine the wear and abrasion resistance of fabric used in clothing, footwear and industries. Universal wear tester supplies with surface abrasion head (inflated diaphragm method) and Flex abrasion head as well as necessary weights and blades. Accessories are available on request for conducting frosting, pilling and edge abrasion tests.
Universal wear tester (stoll universal wear tester) fitted with the built-in timer and mechanical cycle counter; repeatable and reproducible testing is ensured by consistent motor speed providing 120 double strokes per minute of 25mm (1in) stroke length. The improved air injection system for more uniform inflation of the diaphragm used in surface abrasion testing, and a superior clamping mechanism for repeatable specimen tensioning.
Specifications
- Rotation Speed 120rpm
- Measuring Range 25mm
- Counter
- Depth Abrasion kits
- Surface Abrasion kits
- Flex Abrasion kits
Optional order
- Frosting Attachment
- Edge and Fold Abrasion Clamp
- Elastomeric Friction Pad and Base Pad
- Photographic Standards for ASTM D 3514
- Verification ribbon 50yd / roll
- Abrasive ‘0’ 50 yd/ roll
- Abrasive ‘600A’ 50 yd/ roll
- Abrasive ‘320J’ 50 yd/ roll
Weight
- 80 kg
