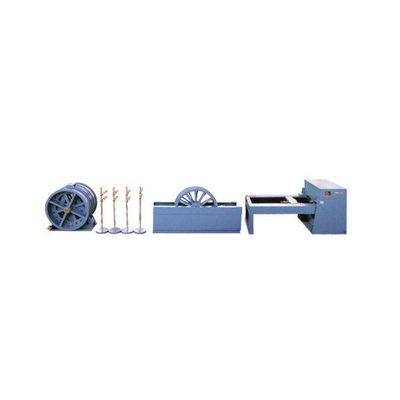

TESTRON - Model TT-LY1000 -Optical Fiber Cable Tensile & Crush Testing Machine

SHARE

Closed loop force, displacement, and deformation testing is available on this equipment. The load frames are made of hard materials that provide excellent axial and lateral stiffness.

Most popular related searches
load frame
tensile test
tensile testing
strain monitoring
material testing
weighing system
tensile testing system
cable crushing system
crushing system
extensometer

Method E1: Tensile performance
This measuring method applies to optical fiber cables which are tested at a particular tensile strength to examine the behavior of the attenuation and/or the fiber elongation strain as a function of the load on a cable which may occur during installation. This method is intended to be non-destructive (the tension applied shall be within the operational values).

Method E3: Crush
The purpose of this test is to determine the ability of an optical fiber cable to withstand crushing.

IEC-60794-1-2 Method E1 Object
This measuring method applies to optical fiber cables, which are tested at tensile strength to examine the behavior of the attenuation and the fiber elongation strain as a function of the load on a cable, which may occur during installation and/or operation.

Load capacity: 100KN/150KN/200KN
Accuracy class: ±0.5%
Measuring range: 0.4%-100%
Crush platen: 100mm×100mm,hardness:HB240~280
loading speed: 0.2~500mm/min
Deformation measuring accuracy: ±0.5%
Displacement measuring accuracy: ±0.3%
Elongation measurement: 1. gauge length:1000mm
2. Measuring resolution is better than 10μm
3. Accuracy is better than ±0.5%.
Crosshead travel: 800~1100mm

Load Measurement Accuracy

  • ±0.5% of reading to 1/100 of load weighing system capacity meets or exceeds the requirements of the following standards: ISO 7500-1, EN 10002-2, ASTM E4, JIS B7721.

Strain Measurement Accuracy

  • ±0.5% of reading to 1/50 of full scale with most ASTM E83 class B or ISO 9513 class 0.5 extensometers meets or exceeds ASTM E83, ISO 9513, and EN 10002-4.

Speed Accuracy

  • Set speed<0.05% Max. Speed: ±1%
  • Set speed ≥0.05% Max. Speed: ±0.5%.

Position measurement accuracy

  • ±0.01% of reading or 0.0001mm, whichever is greater

Power supply

  • Standard optional voltages 220/240VAC, 50-60 Hz, Power must be free of spikes and surges exceeding 10% of the nominal voltage.

Humidity Range

  • 10% to 90% non-condensing.

Storage Temperature

  • -40 to +66°C (-40 to +150°F)
