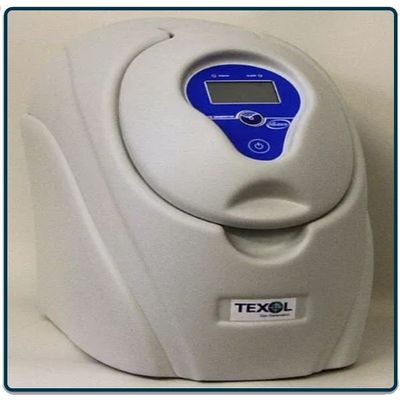

Texol - Laboratory Hydrogen Generator
Remove high preasure Hydrogen tanks by instaling the Texol Laboratory hydrogen generator for on request hydrogen where you need it, when you need it. Our laboratory Hydrogen generators use the newest membrane technology for the electrolytic production of pure H2 gas. This technology was preferred over alternative hydrogen generating techniques because it is clean, requires less maintenance and there is no need to store chemicals to maintain operation. Hydrogen is produced by electrolysis of water through a polymer membrane. Only pure water, either distilled or deionised, is required to provide trouble free long term operation. Texol Laboratory Hydrogen generator range is avaliable in many sizes contact us to request more information on which of our range best suits your requirements.
Our range of high purity Hydrogen Generators that provide flexibility and outputs of up to 0.65L/min.
Utilising Polymer Electrolyte Membrane (PEM) technology our Hydrogen generators provide ideal performance, efficiency and reliability. High purity Hydrogen is delivered as required. The small size of the generator allows it to be easily accommodated on top of a workbench.
Our Hydrogen generators provide flexibility to match your system requirements. Each system can deliver a variety of flow rates and pressures to suit your specifications.
- Flow Rates of up to 650cc/min
- Hydrogen Purity of > 99.9995%
- LCD Touch Screen
- PEM technology
- Output Pressure 1 to 10 barg (14.5 to 145 psig)
- Easy Installation
- Simple maintenance
- Automatic Water refill

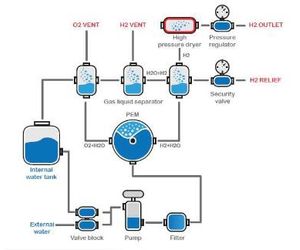

Deionised or distilled water is pumped into a polymer electrolyte membrane (PEM) cell. Within the PEM cell Electrolytic Disassociation splits the water into Hydrogen and Oxygen. The Oxygen is vented safely from the system whilst the Hydrogen proceeds through the system. After passing through a gas/liquid separator the hydrogen gas enters a desiccant chamber to remove the last traces of water from the gas. The hydrogen then passes to the application via a pressure regulator.
- Flow rate (cc/min): 120-650
- Purity : >99.9995%
- Outlet Pressure (Barg/PSIg): 1-10/14.5-145
- Power (W): 200-800
- Height(mm): 430
- Width(mm): 300
- Depth(mm): 430
