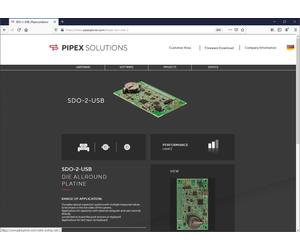

Video Overlay - Model SDO-2-USB -text as overlay in video with USB-Keyboard
RANGE OF APPLICATION: Complex optical inspection systems with multiple measured values to be shown in the live video of the camera. Applications for operation with external computer and user controls directly connected on board like push buttons or keyboard. Applications for text input via keyboard.
CHARACTERISTICS:
• multi processor solution with 3 processors
• insert of up to 36 measured values in 3 lines with 3 values each
• real time clock with battery backup
• measurement input extension over second serial port
(to read values of the camera system)
• USB/2-keyboard interface for text input and control
• 2 video inputs (switchable)
• 4 video output
FEATURES:
Overlay of up to 36 measured values in live video
(sensor signals input can be provided by a variety
of different interfaces) e.g. to display position,
RPM, speed, time and date, pressure,
temperature, humidity and others for all types
of machinery and equipment with live camera.
