The Janssen Lateral Rehabilitation System

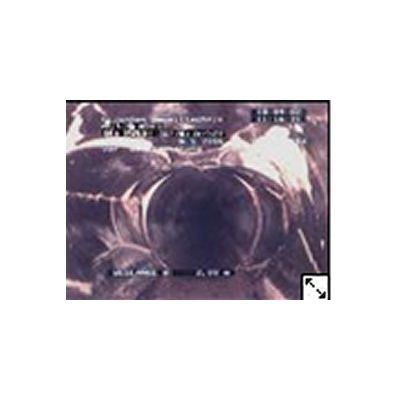

The Janssen Lateral Rehabilitation System consists of a packer with a side opening from which an inflatable piston guided by tv cameras is extended into the lateral connection. Packer and the side piston are then expanded to the cross section of their specific pipe. The side bladder extends deep into the lateral pipe and forms a homogenous T with the packer in the main pipe. The resin is then injected and seals any cracks, holes, breaks, or the like. The cross section is fully maintained. Any voids in the soil around the pipe are filled with the hardening resin, thus solidifying the soil and guaranteeing the structural integrity of lateral and main pipe. The innovative Janssen Lateral Rehabilitation System is the only such process in the world to repair cracks, breaks below or around the joint with the lateral pipe in one step, which makes it extremely.
