Thenow - Model AF Series -Residential Ceiling System
Constant fresh air in your home is an important aspect to maintain the indoor air quality. A good ventilation system will protect your family from unpleasant odos and harmful contaminants such as formaldehyde and VOCs. Opening window is a simply way to increase ventilation, it can make your air feel less stuffy, but pollen and other allergens will be invited into your home at the same time.

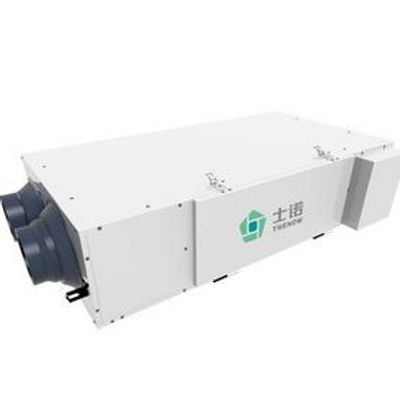

Thenow residential ceiling mounted energy recovery ventilator (ERV)-ESP System AF Series, different from traditional physical filtration, adopt its patented Pure ESP sterilization system with bacterial killing efficiency up to 99.99% and particles filtration fineness small to 0.001 micron. Thenow energy recovery ventilator ESP system, will exchange stale polluted air with fresh and clean outdoor air without wasting energy.
- Innovative high efficiency counter flow full heat exchanger
- Four-layers filtration
- PM2.5-PM0.001 purification efficiency up to 99.99%
- Patented Pure ESP sterilization system filter the air without producing ozone
- High efficiency DC motor, low noise
- Bypass is optional
- Pre heating is optional
- CO2 , VOC, PM2.5 and humidity sensors are optional
- Sensible heat recovery unit is optional
Application of Home Fresh Air Ventilation System With ESP System-AF Series:
- Residential building, Hospital, Offices and shops, Kindergarten, Schools, Hotels, Villa etc.
