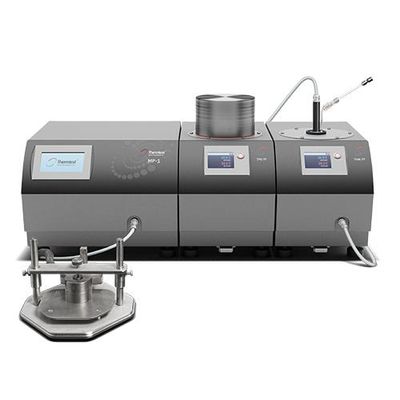

Thermtest - Model MP-1 -Thermal Analysis Platform
The MP-1 is designed to test the absolute thermal conductivity, thermal diffusivity, specific heat, and thermal effusivity of solids, liquids, pastes and powders with the powerful combination of multiple methods.

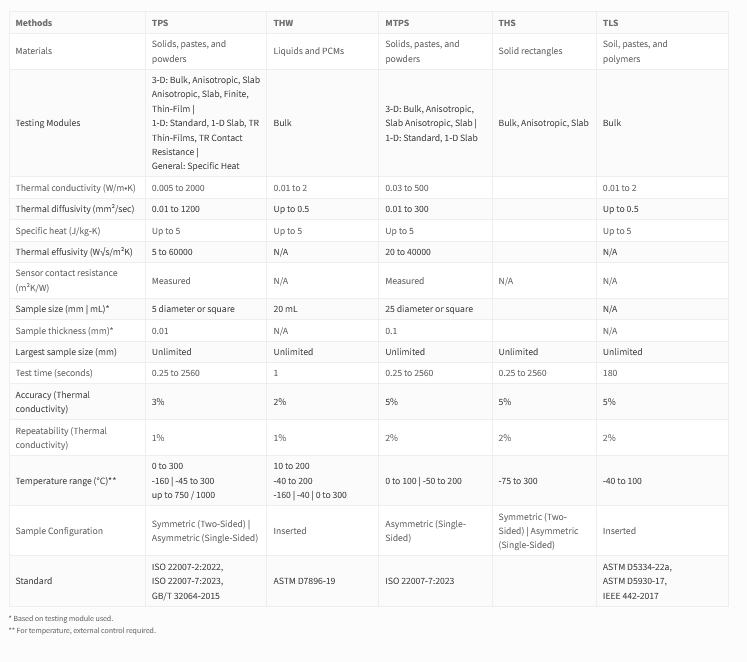

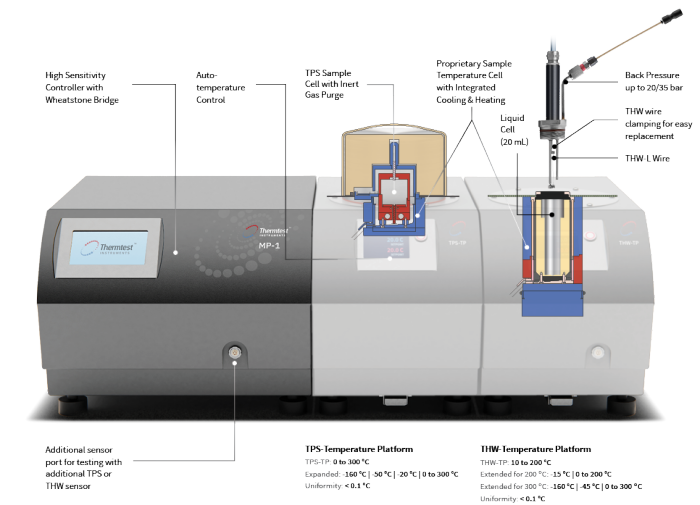

The powerful combination of Transient Plane Source (TPS, ISO 22007-2) for solids, and Transient Hot Wire (THW, ASTM D7896) for liquids, gives the Thermtest MP-1 a unique and versatile selection of testing methods for almost any sample type. The TPS and THW methods are both widely used for accurate measurement of absolute thermal conductivity, thermal diffusivity, specific heat, and thermal effusivity. This versatility is greatly expanded with the addition of Thermtest’s proprietary Temperature Platform (TP) which is appreciated by academic and commercial users alike.
Following ISO 22007-2 and ASTM 7896-19, the TPS and THW are primary measurement methods trusted worldwide with thousands of published papers.
