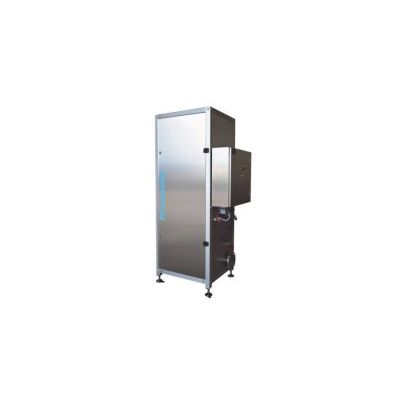

Primozone - Model DM and DEXF Series -Thermal-catalytic Ozone Destruct Units
Even in a correctly designed ozone water treatment system there will be some residual ozone in the off-gas. With a thermal-catalytic ozone destruct unit any un-reacted vent ozone is efficiently and reliably removed in a very energy efficient way.
The Primozone ozone destruct units come in two different models.

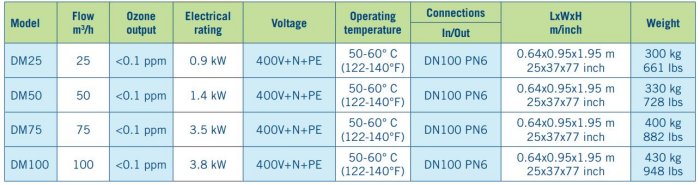

Primozone DM-series
The DM-series has a built-in fan and is the recommended choice when using larger, non-pressurized reaction tanks or basins. The speed of the fan is based on the gas flow to minimize energy usage.
Primozone DEXF-series
The DEXF-series does not include any fan and is recommended for non-pressurized sealed tanks. The DEXF is delivered with a separate electrical cabinet and can be run in manual or automatic mode.
How it works
Thermal catalytic destruct units uses catalytic granular that decomposes the ozone to oxygen. The vent gas is heated before it is passed through the granular to remove humidity and thus improve the performance of the granular.
Features
- High ozone destruction efficiency ensuring
- Very energy efficient
- Temperature is monitored and adjusted automatically
- Manual or automatic operation
