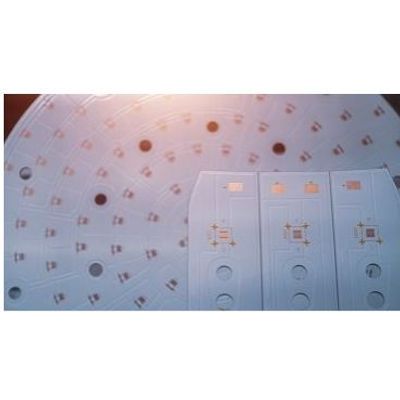

PCB May - Model 1.0W/mk -Thermal Conductity Aluminum Printed Circuit Boards (PCB)

Every rigid and flexible printed circuit board (PCB) design is different, customized to meet the board’s purpose. The same is true for the PCB base material — fiberglass is a popular base material, but aluminum-based PCBs are also very effective in many applications. Aluminum PCBs consist of a metal-based, copper-clad laminate that delivers high performance, including excellent thermal conductivity and electrical insulation.

• Heat dissipation is dramatically superior to standard FR-4 constructions.
• The dielectrics used are typically 5 to 10 times as thermally conductive as conventional epoxy-glass and a tenth of the thickness.
• Thermal transfer exponentially more efficient than a conventional rigid PCB.
• Lower copper weights than suggested by the IPC heat-rise charts can be used.
• Provide high thermal conductity 4.2w/m-k.
• Heat removal without using additional radiators.
• Do not need the use of blowing equipment, with the correct calculation.
• Provide the required rigidity of the product.
• Can be made in any shape.
