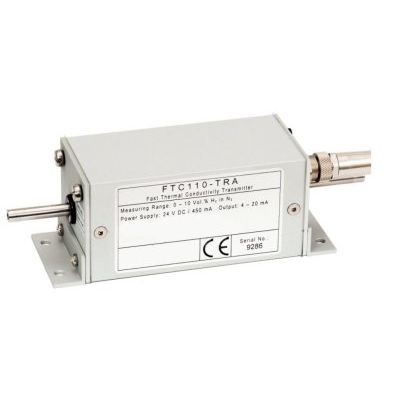

JCT - Model FTC110-TRA -Thermal Conductivity Detector
Applications: For extractive gas analysis. For quality and process monitoring. For contiuous concentration determination of single gas components like e.g. H2, CO2, O2, He. For the H2-measurement at heat treatment in the metal industry. For the H2-measurement in miniplants.
Most popular related searches
thermal conductivity monitoring
thermal conductivity detector
H2S monitoring
conductivity monitoring
gas mixture
gas analysis
process monitoring
temperature sensor
conductivity detector
H2S
- Precise and long-term stable thermal conductivity measurement
- Independent of gas flow and gas pressure
- High sensitivity independent of the ambient temperature
- Fast response time (T90 approx. 1 s)
- Pressure resistant gas paths out of stainless steel (10 bara)
- Robust tight aluminium housing (IP65)
- Small dimensions
- Linear signal output 4-20 mA
- Easy calibration with 2 potentiometers
- Factory configuration and calibration
- Based on micromechanic silicon chip
- Detector mounted in a stainless steel housing
- Stainless steel housing and electronic mounted in a sealed aluminium housing
- Operation of the detector with 2 heating elements and a temperature sensor at constant 60°C
- Gas concentration corresponds to required compensation energy, depending on cooling of the chip due to varying thermal conductivity
- Especially good measuring results are achieved under following conditions:
- at binary gas mixtures, e.g. CO2 in N2, O2 in Ar or H2 in N2
- if only 2 gas components at multi component mixtures vary in concentration, e.g. CO2 in air
- if the measured component has a significantly different thermal conductivity than the remaining gas components, e.g. H2, He, CO2 in air or impurities in H2
