Lohmann - Model DuploCOLL TC -Thermal Conductivity Tape for Heat Transfer

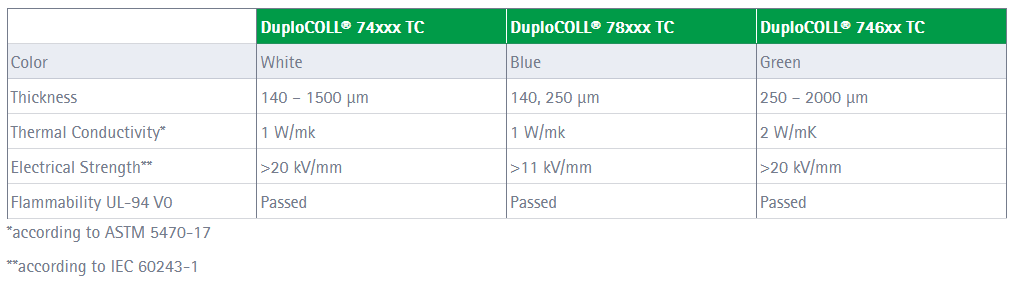

Additionally, they can compensate component tolerances as well as seal against dust or moisture. A good thermal management contributes to a long life-time of the electronic component. The thermally conductive portfolio fulfills the flame-retardant requirements according to UL 94. In short-term use they are heat resistant up to 180 °C. What’s more, they offer also high electrical insulation properties with breakdown voltage up to 26 kV/mm. All tapes of the thermally conductive range are available as rolls or customized high-tech die-cuts in various standard thicknesses from 140 μm to 2 mm. To support automated production processes, different colors are available for better detection by camera or optical sensor systems.
