SAREX - Model MX-2000 -Thermal Dryer

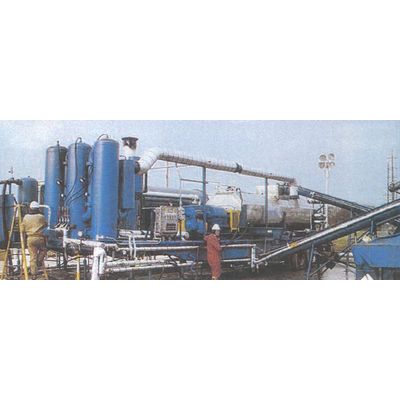

The SAREX ® MX-1500 is a modular three phase CENTRIFUGE SYSTEM for processing oily sludges from: The MX-2000 is a low temperature THERMAL DRYER for processing wet solids generated from dewatered sludge, sediments, or soils. The MX-2000 is a mobile steam or hot-oil indirectly heated thermal screw processor. Typical solids processing temperatures range from 82.22 C (180 F) for a steam unit to a maximum of 315.56 C (600 F) for a hot-oil heated system. The solids are dewatered and the majority of residual oil and VOC’s are desorbed from the solids matrix. The desorbed organic and water vapors are processed through the state-of-the-art vapor recovery system (VRS). The dried solids exit the MX-2000 for either final disposal or for further thermal processing using the MX-2500 or for direct cement kiln recycling.
- Can achieve over 50 percent volume reduction
- Substantially reduces off-site disposal costs
- Will desorb most VOCs and some semiVOCs to below acceptable cleanup standards
- Recovery of desorbed oils
- Proven operating experience of 8+ years
- Compact and easily transported
- Very flexible in dewatering varying waste streams
- Can operate in batch or continuous mode
- Relatively low power consumption
- Very safe, Class I Div. II explosion proof system
- Easily permitted
- Refinery K048-K052 oily sludges
- Refinery and petrochemical F037 and F038 sludges or filter cake.
- Tank & pond cleanout sludges.
- Oily filter cake drying
- Belt press cake drying
- BIOX sludge dewatering
- Dewatering of hazardous wastes before entering an incinerator or cement kiln
- Remediation of petroleum hydrocarbon solids
- Remediation of chlorinated hydrocarbon soils
