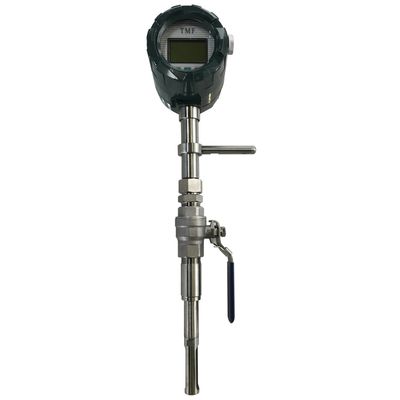

Chunye - Model T4205 -Thermal Gas Mass Flowmeter
The thermal gas mass flowmeter is designed based on the principle of thermal diffusion. It adopts the method of constant temperature difference to measure the gas accurately.It has the advantages of small volume, high digitization, easy installation and accurate measurement.The sensor is composed of two reference platinum resistance temperature sensors. When the instrument is working, one sensor continuously measures the medium temperature T1.The other sensor is self-heated to a temperature of T2 higher than the medium temperature.
It is used to sense the flow velocity of the flow body and is called a velocity sensor.The temperature Δ T = T2, T1, T2 & gt;T1, when the fluid flows through, due to gas molecule collision sensors and T2 heat away, and make the T2 temperature drop, to make Δ T stay the same, will improve the T2 power supply current, gas flow velocity in the heat fast, take away the more heat, gas flow rate and increase the heat there is a fixed function relationship, this is the principle of constant temperature.
- The real mass flowmeter, the gas flow measurement does not need temperature and pressure compensation, the measurement is convenient and accurate.The mass flow rate or standard volume flow rate of the gas can be obtained.
- Wide range ratio can be used for gas leak detection if the flow rate is as high as 100Nm/s and as low as 0.1nm /s.
- Good seismic performance and long service life.The sensor has no moving parts and pressure sensing parts, and is not affected by vibration to the measurement accuracy.
- Easy installation and maintenance.Installation and maintenance can be achieved without stopping production if the site conditions permit.(need special customization)
- Digital design.Overall digital circuit measurement, measurement accuracy, easy maintenance.
- Adopting rs-485 communication or HART communication, factory automation and integration can be realized.
- Performance technical parameters
- Structural form insert tube type
- Any gas (other than acetylene) in the measuring medium
- Pipe diameter: DN15 ~ 4000mm; DN15 ~ 2000mm
- Flow rate ranges from 0.1 to 120 Nm/s
- Accuracy ±1 ~ 2.5%
- Working temperature sensor: -40 ~ +220? converter: -20 ~ +45?
- Working pressure medium pressure ≤ 2.5mpa medium pressure ≤ 4.0mpa
- Power supply DC 24V or AC220V≤ 18W
- Response speed 1s
- 4-20 ma output signal (photoelectric isolation, maximum load 500 Ω), pulse, RS - 485 (photoelectric isolation), HART protocol
- Alarm 1-2 relay normally open contact, 10A/220V/AC, 5A/30V/DC
- Supply type split structure, integrated structure
- The pipeline is made of carbon steel, stainless steel, plastic, etc
- Scene display four-line Chinese character LCD display
- Display content quality flow, standard volume flow, cumulative flow, standard time, cumulative running time, standard flow rate, etc
- Protection level IP65
- The sensor is made of stainless steel, stainless steel and carbon steel
