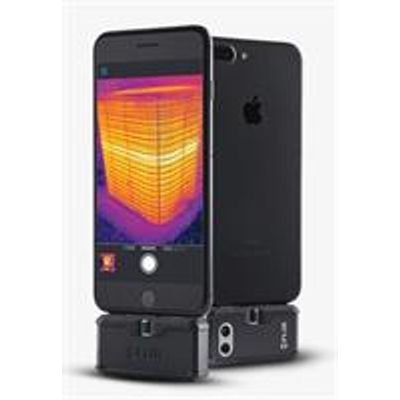

FLIR - Model ONE Pro -Thermal Imaging Cameras for Smartphones
The FLIR ONE Pro helps you find invisible problems faster than ever, whether you`re inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage. This FLIR ONE Pro-Series camera offers 4x the native resolution of the FLIR ONE Pro LT, for sharper image clarity that`s further enhanced by the revolutionary FLIR VividIR™ image processing. Measure temperatures more than 3x higher than any FLIR ONE model—up to 400°C (752°F)—with a sensitivity that detects temperature differences down to 70 mK. Packed with powerful measurement tools, the FLIR ONE Pro will work as hard as you do.
Most popular related searches
thermal camera
thermal imaging camera
water damage
thermal imaging
process monitoring
FLIR camera
HVAC
temperature monitoring
RoHS
- OVERVIEW
- Non-Operating Temperature : -20°C — 60°C (-4°F — 140°F)
- Scene Dynamic Range : -20°C — 400°C (-4°F — 752°F)
- Spot Meter : Off / °C / °F. Resolution 0.1°C / 0.1°F
- Thermal Sensitivity/NETD : 70 mK
- Dimensions (H x W x D) : 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)
- Phone : IOS
- APP
- Adjustable MSX distance : 0.3 m — Infinity
- Battery charge monitor : 0 — 100%
- Capture modes : Video, Still image, Time lapse
- File Formats : Still images – radiometric jpeg
- Palette : Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Contrast, Arctic, Lava and Wheel
- Video and Still Image Display / Capture : Saved as 1440 × 1080
- COMPLIANCE & CERTIFICATIONS
- Certifications : MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
- CONNECTIONS & COMMUNICATIONS
- Charging : Female USB-C (5V/1A)
- Video : Male Lightning
- ENVIRONMENTAL & APPROVALS
- Emissivity Settings : Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- Mechanical shock : Drop from 1.8 m
- Operating Temperature : 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
- IMAGING & OPTICAL
- Focus : Fixed 15 cm — Infinity
- Frame Rate : 8.7 Hz
- General Description : Thermal and Visual Cameras with MSX
- HFOV/VFOV : 55° ±1° / 43° ±1°
- Shutter : Automatic/Manual
- ThermalResolution : 160 × 120
- Thermal Sensor : Pixel size 12 µm, 8 — 14 µm spectral range
- Visual Resolution : 1440 × 1080
- PERFORMANCE
- Accuracy : ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
- POWER
- Battery charge time : 40 min
- Battery life : Approximately 1 hr
