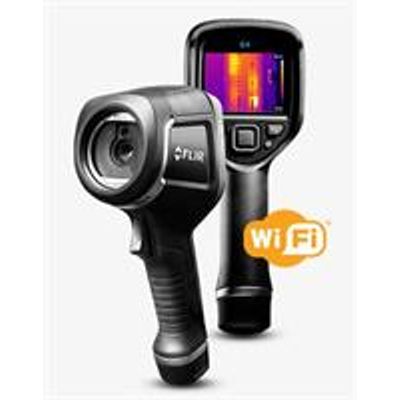

FLIR - Model E8 -Thermal Imaging Cameras with MSX & WI-FI
The FLIR E8 with Wi-Fi offers affordable, high-resolution thermal imaging with the added advantage of wireless connectivity. Find hidden electrical faults, mechanical issues, and sources of energy loss thanks to the E8`s crisp 76,800 (320 x 240) pixel infrared resolution and MSX® image enhancements. Then, streamline your workload by uploading and sharing images and data over Wi-Fi to the FLIR Tools mobile app.
Most popular related searches
- OVERVIEW
- Detector Type : Uncooled microbolometer
- IR Resolution : 320 × 240 pixels
- List of Contents : Infrared camera, Hard transport case, Battery (inside camera), USB cable, Power supply/charger with EU, UK, US and Australian plugs, Printed documentation
- Set-up Commands : Local adaptation of units, language, date and time formats
- Spectral Range : 7.5–13 µm
- COMPLIANCE & CERTIFICATIONS
- Certifications : UL, CSA, CE, PSE and CCC
- CONNECTIONS & COMMUNICATIONS
- Interface : USB Micro: Data transfer to and from PC and Mac device
- WiFi : Peer-to-peer or network
- ENVIRONMENTAL
- Emissivity table/correction : Emissivity table of predefined materials/variable from 0.1 to 1.0
- Encapsulation/Drop : IP 54 (IEC 60529)/2m (6.6 ft.)
- IMAGING & OPTICAL
- Camera size (L x W x H) : 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)
- Camera weight incl battery : 0.575 kg (1.27 lb.)
- Color palettes : Black & white, iron, and rainbow
- Display : 3.0 in. 320 × 240 color LCD
- Field of view (FOV) : 45° × 34°
- Focus : Focus free
- Image Adjustment : Automatic/Manual
- Image Frequency : 9 Hz
- Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera
- Minimum Focus Distance : 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX) : IR image enhanced with visible camera detail
- Picture-in-Picture : IR area on visual image
- Digital Camera Resolution/FOV : 640 × 480/55° × 43°
- MEASUREMENT & ANALYSIS
- Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)
- Object Temperature Range : –20°C to +250°C (–4°F to +482°F
- Spot Meter : Center spot; box with min./max.
- Thermal Sensitivity/NETD : <0.06°C (0.11°F) / <60 mK
- Spotmeter and Area : Center spot; box with min./max.
- POWER
- Battery type & operating time : Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
- STORAGE MEDIA
- File Formats : Standard JPEG, 14-bit measurement data included
