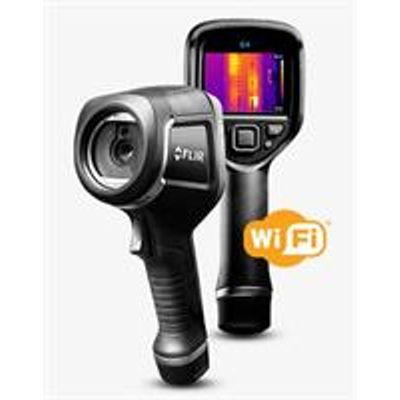

FLIR - Model 63906-0604 E4 -Thermal Imaging Cameras with MSX & Wifi
The FLIR E4 with Wi-Fi is an easy-to-use thermal imaging camera for electrical, mechanical, building, and HVAC/R applications. Find hidden problems, take accurate temperature readings, and confirm repairs easily, thanks to the 4,800 (80 x 60) pixel infrared resolution and MSX image enhancements. Then, streamline your work using the built-in Wi-Fi, for uploading and sharing images and data through the FLIR Tools mobile app.
Most popular related searches
thermal imaging camera
thermal imaging
thermal camera
infrared camera
spectral imaging
e-waste
HVAC
RoHS
FLIR camera
e-waste RoHS
- OVERVIEW
- Detector Type : Uncooled microbolometer
- IR Resolution : 80 × 60 pixels
- List of Contents : •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
- Packaging Size : 385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.)
- Set-up Commands : Local adaptation of units, language, date and time formats
- Spectral Range : 7.5–13 µm
- COMPLIANCE & CERTIFICATIONS
- Certifications : UL, CSA, CE, PSE and CCC
- CONNECTIONS & COMMUNICATIONS
- AC Operation : AC adapter, 90–260 VAC input, 5 VDC output to camera
- Interface : USB Micro: Data transfer to and from PC and Mac device
- WiFi : •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
- ENVIRONMENTAL
- EMC : WEEE 2012/19/EC, RoHs 2011/65/EC, C-Tick, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class
- Humidity (Operating and Storage) : IEC 60068-2-30/24 h 95% relative humidity
- Operating Temperature Range : –15°C to +50°C (+5°F to +122°F)
- Radio Spectrum : •ETSI EN 300 328 •FCC 47 CSR Part 15 •RSS-247 Issue 2
- Shock : 25 g (IEC 60068-2-27)
- Storage Temperature Range : –40°C to +70°C (–40°F to +158°F)
- Vibration : 2 g (IEC 60068-2-6)
- Emissivity table/correction : Emissivity table of predefined materials/variable from 0.1 to 1.0
- Encapsulation/Drop : IP 54 (IEC 60529)/2m (6.6 ft.)
- IMAGING & OPTICAL
- Camera size (L x W x H) : 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)
- Camera weight incl battery : 0.575 kg (1.27 lb.)
- Color : Black and gray
- Color palettes : Black & white, iron, and rainbow
- Display : 3.0 in. 320 × 240 color LCD
- f-number : 1.5
- Field of view (FOV) : 45° × 34°
- Focus : Focus free
- Image Adjustment : Automatic adjust/lock image
- Image Frequency : 9 Hz
- Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera
- Minimum Focus Distance : 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX) : IR image enhanced with visible camera detail
- Picture-in-Picture : IR area on visual image
- Spatial resolution (IFOV) : 10.3 mrad
- Digital Camera Resolution/FOV : 640 × 480/55° × 43°
- MEASUREMENT & ANALYSIS
- Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)
- Area : Box with max./min.
- Isotherm : Above/below/interval
- Object Temperature Range : –20°C to +250°C (–4°F to +482°F
- Reflected apparent temperature correction : Automatic, based on input of reflected temperature
- Thermal Sensitivity/NETD : <0.15°C (0.27°F) / <150 mK
- Spotmeter and Area : Center spot; box with min./max.
- METER DATA
- Display : 3.0 in. 320 × 240 color LCD
- POWER
- Charging system : Battery is charged inside the camera or in specific charger.
- Charging Time : 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management : Automatic shut-down
- Battery type & operating time : Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
- STORAGE MEDIA
- File Formats : Standard JPEG, 14-bit measurement data included
