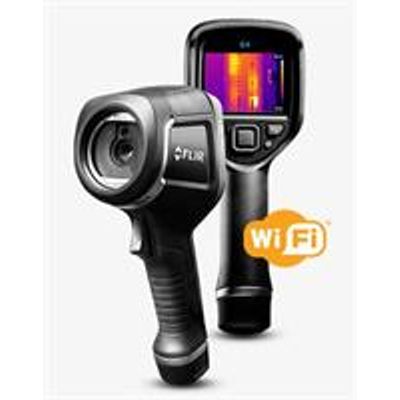

FLIR - Model 63909-0904 E5 -Thermal Imaging Cameras with MSX & WIFI

FromTeledyne FLIR LLC

SHARE

FLIR E5 with Wi-Fi is a powerful temperature measurement tool that`s perfect for diagnosing electrical, mechanical, and building problems. Thanks to the 10,800 (120 x 90) pixel infrared detector, you can find hidden issues quickly and easily, and record accurate temperature measurements across your target. The built-in Wi-Fi can help streamline your workload, allowing you to upload and share images and data through the FLIR Tools mobile app.

Most popular related searches

thermal imaging camera

temperature monitoring

thermal imaging

infrared camera

spectral imaging

temperature recorder

OVERVIEW

Detector Type : Uncooled microbolometer
IR Resolution : 120 × 90 pixels
List of Contents : •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
Packaging Size : 385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.)
Set-up Commands : Local adaptation of units, language, date and time formats
Spectral Range : 7.5–13 µm

COMPLIANCE & CERTIFICATIONS

Certifications : UL, CSA, CE, PSE and CCC
CONNECTIONS & COMMUNICATIONS
AC Operation : AC adapter, 90–260 VAC input, 5 VDC output to camera
Interface : USB Micro: Data transfer to and from PC and Mac device
WiFi : •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

EMC : •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity (Operating and Storage) : IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range : –15°C to +50°C (+5°F to +122°F)
Radio Spectrum : •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
Shock : 25 g (IEC 60068-2-27)
Storage Temperature Range : –40°C to +70°C (–40°F to +158°F)
Vibration : 2 g (IEC 60068-2-6)
Emissivity table/correction : Emissivity table of predefined materials/variable from 0.1 to 1.0
Encapsulation/Drop : IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Camera size (L x W x H) : 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)
Camera weight incl battery : 0.575 kg (1.27 lb.)
Color : Black and gray
Color palettes : Black & white, iron, and rainbow
Display : 3.0 in. 320 × 240 color LCD
f-number : 1.5
Field of view (FOV) : 45° × 34°
Focus : Focus free
Image Adjustment : Automatic adjust/lock image
Image Frequency : 9 Hz
Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera
Minimum Focus Distance : 0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging (MSX) : IR image enhanced with visible camera detail
Picture-in-Picture : IR area on visual image
Spatial resolution (IFOV) : 6.9 mrad
Digital Camera Resolution/FOV : 640 × 480/55° × 43°
MEASUREMENT & ANALYSIS
Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)
Isotherm : Above/below/interval
Object Temperature Range : –20°C to +250°C (–4°F to +482°F
Reflected apparent temperature correction : Automatic, based on input of reflected temperature
Thermal Sensitivity/NETD : <0.10°C (0.27°F) / <100 mK
Spotmeter and Area : Center spot; box with min./max.

POWER

Charging system : Battery is charged inside the camera or in specific charger.
Charging Time : 2.5 hours to 90% capacity in camera. 2 hours in charger.
Power Management : Automatic shut-down
Battery type & operating time : Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

STORAGE MEDIA

File Formats : Standard JPEG, 14-bit measurement data included
