THI - Model HFM-200 LFE -Thermal Mass Flow Meters
Low Pressure Drop, Large Flow Rates! The HFM-200 LFE Series by Teledyne Hastings can be configured and accurately measure gas flow in a broad array of applications. Featuring reliability and stability, the 200 Series is chosen by users for its very stable performance with varying ambient conditions. A wide choice of elastomer seals make this flow meter compatible with most gases.
The HFM-200 LFE meter has flow ranges from 0-10 sccm to flows of 0-15,000 slm; provides analog outputs, and is constructed of stainless steel. The full scale range is specified by the end user. A NIST traceable calibration certificate is standard. Cleaning for oxygen service is available. Our laminar flow elements (smooth, threaded or flanged) are available in various sizes from 3/8" up to 8". Low pressure drops at full scale flow.
±(1% of full scale) Accuracy

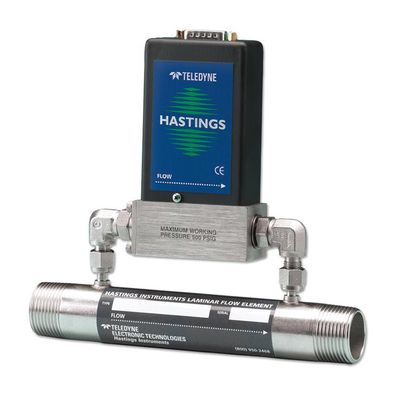

HFM 200 LFE product overview image.JPGBuy from the designers, Teledyne Hastings, and experience extraordinary customer service. Let us solve your application challenges, by designing and building your custom flow instruments.
- Bulk Gas Handling
- Industrial Furnaces
- Process Flow
- Range (User Selectable): 0 - 10 sccm to 0 - 15,000 slm (N2)
- Accuracy: + 1.0% of full scale
- Repeatability: + 0.05% of full scale
- Maximum Working Pressure: 150 PSIG for Flanged LFEs
- 500 PSIG for Threaded or Smooth LFEs
- 500 PSIG for Transducer
- Analog I/O (Standard): 0 - 5 VDC
- Analog I/O (Optional): 4 - 20 mA, 0 - 20 mA
- Fitting Options, Transducer:
- Fitting Options, LFE:: 1/4" Elbow
- Smooth, Threaded, Flange (Flow Rate Dependent)
- Elastomer Seal Options Viton®, Kalrez, Buna-N, Neoprene
- Connector (+/- 15 VDC): 15-pin subminiature D
- Connector (+ 24 VDC): 9-pin subminiature D
- Power Requirements (+ 15V): + (14 - 16) VDC @ +30 mA (<1 Watt)
- Power Requirements (+ 24V): (14 - 32) VDC (<1.9 Watt)
- Wetted Materials: 316SS, Viton®, 87/13 Au/Ni Braze
