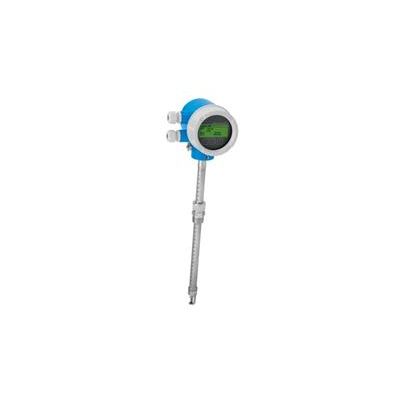

Proline - Model t-mass B 150 -Thermal Mass Flowmeter
The flowmeter for cost-effective measurement and easy monitoring of utility gases. The t-mass B 150 insertion version is suitable for large pipelines or rectangular ventilation ducts. It is designed for the cost-effective measurement of utility gases, in particular compressed air. It is a trending device aimed at sub-metering applications. Its 4-wire technology is contained within a rugged compact aluminum housing. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.
-
Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts
-
Optimal process monitoring – easy measurement even at low pressures and flow velocities
-
Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free
-
Reliable flow trending – multivariable measurement
-
Fast and efficient commissioning – guided operating menus
-
High plant availability – self-diagnostics and error monitoring
-
Automatic recovery of data for servicing
-
Measuring principle is characterized by a high operable flow range and direct mass flow measurement
-
Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts.
Device properties
-
Insertion version for nominal diameter DN 80 to 1500 (3 to 60")
-
Installation and removal of sensor without process interruption
-
Easy installation
-
Device in compact version with DC 24 V power supply
-
4-20 mA HART, pulse/frequency/switch output
-
Compact and robust transmitter
- Measuring Principle: Thermal
- Product headline: The flowmeter for cost‐effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts.
- Sensor features: Optimal process monitoring – easy measurement even at low pressures and flow velocities. Cost‐effective measurement – easy installation, negligible pressure loss and maintenance‐free. Reliable flow trending – multivariable measurement. Insertion version for nominal diameter DN 80 to 1500 (3 to 60"). Installation and removal of sensor without process interruption.
- Transmitter features: Fast and efficient commissioning – guided operating menus. High plant availability – self‐diagnostics and error monitoring. Automatic recovery of data for servicing. Device in compact version with DC 24 V power supply. 4‐20 mA HART, pulse/frequency/switch output.
- Nominal diameter range: DN 80 to 1500 (3 to 60")
- Wetted materials:
- Transducer: 1.4404 (316L)
- Insertion tube: 1.4404 (316L); 1.4435 (316L)
- Connection:
- Compression fitting: 1.4404 (316L)
- Sealing ring: EPDM; HNBR; 1.4401 (316)
- Clamping ring: PEEK 450G
- Measured variables: Mass flow, temperature, corrected volume flow, FAD volume flow
- Max. measured error:
- 3 % o.r.
- 4 % o.r.
- 5 % o.f.s.
- (depending on chosen option of ordering feature "Calibration flow")
- Measuring range:
- 20 to 720 000 kg/h (45 to 1 587 600 lb/h)
- 20 to 1 080 000 kg/h (45 to 2 381 400 lb/h)
- (for air, depending on chosen option of ordering feature "Calibration flow")
- Max. process pressure: 20 bar g (290 psi g)
- Medium temperature range: –40 to +100 °C (–40 to +212 °F)
- Ambient temperature range: –40 to +60 °C (–40 to +140 °F)
- Transmitter housing material: AlSi10Mg, coated
- Degree of protection: IP66/67, type 4X enclosure
- Display/Operation: 4‐line display with push Buttons
- Configuration via local display and operating tools possible
- Outputs:
- 4‐20 mA HART (active)
- Pulse/frequency/switch output (passive)
- Inputs: Status input
- Digital communication: HART
- Power supply: DC 18 to 30 V
- Hazardous area approvals: ATEX, IECEx, cCSAus
- Metrological approvals and certificates: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
- Pressure approvals and certificates: CRN
