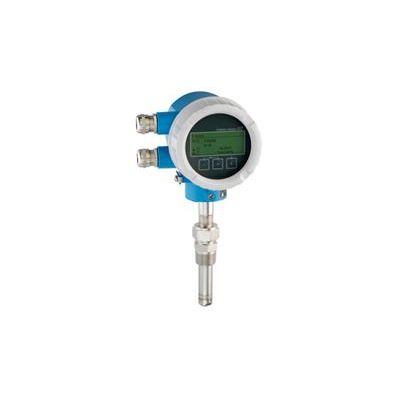

Proline - Model t-mass T 150 -Thermal Mass Flowmeter
The flowmeter for reliable and easy monitoring of liquids. The t-mass T 150 is the first thermal mass device from Endress+Hauser for measuring liquids. t-mass T 150 is designed chiefly for water applications. As it measures independently of the electrical conductivity of a fluid and can be used in a variety of water-based and non-water-based liquids for the purpose of monitoring and trending. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.
-
Dedicated to the monitoring of conductive and non-conductive liquids
-
High process safety – high repeatability and linearity due to integrated temperature compensation
-
Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free
-
Reliable flow trending – multivariable measurement
-
Fast and efficient commissioning – guided operating menus
-
High plant availability – self-diagnostics and error monitoring
-
Automatic recovery of data for servicing
-
Measuring principle is characterized by a high operable flow range and direct mass flow measurement
-
Dedicated to the monitoring of conductive and non-conductive liquids.
Device properties
-
Insertion version for nominal diameter DN 40 to 1000 (1 1/2 to 40")
-
Sensor in standard or hygienic version
-
SIP cleaning possible up to 130 °C (266 °F)
-
Device in compact version with DC 24 V power supply
-
4-20 mA HART, pulse/frequency/switch output
-
Compact and robust transmitter
- Measuring Principle: Thermal
- Product headline: The flowmeter for reliable and easy monitoring of liquids. Dedicated to the monitoring of conductive and non‐conductive liquids.
- Sensor features: High process safety – high repeatability and linearity due to integrated temperature compensation. Cost‐effective measurement – easy installation, negligible pressure loss and maintenance‐free. Reliable flow trending – multivariable measurement. Insertion version for nominal diameter DN 40 to 1000 (1½ to 40"). Sensor in standard or hygienic version.
- Transmitter features: Fast and efficient commissioning – guided operating menus. High plant availability – self‐diagnostics and error monitoring. Automatic recovery of data for servicing. Device in compact version with DC 24 V power supply. 4‐20 mA HART, pulse/frequency/switch output.
- Nominal diameter range: DN 40 to 1000 (1½ to 40")
- Wetted materials:
- Transducer: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
- Insertion tube: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
- Connection:
- Compression fitting: 1.4404 (316L); Alloy C22, 2.4602 (UNS N06022)
- Threadolet: 1.4404 (316L); Alloy C22, 2.4602 (UNS N06022)
- Clamping ferrule: PEEK 450G; 1.4404 (316L); Alloy C22, 2.4602 (UNS N06022)
- Tri‐Clamp; DN40 DIN 11851, DN50 DIN 11851; DN40 DIN 11864‐1A, DN50 DIN 11864‐1A: 1.4404 (316L)
- Measured variables: Mass flow, temperature, volume flow
- Max. measured error: Flow: ±5 % o.f.s.
- Measuring range: 226 to 14 100 000 l/h (60 to 3 730 000 gal/h)
- (under reference conditions)
- Max. process pressure: PN 40
- Medium temperature range: –20 to +100 °C (–4 to +212 °F)
- Ambient temperature range: –40 to +60 °C (–40 to +140 °F)
- Transmitter housing material: AlSi10Mg, coated
- Degree of protection: IP66/67, type 4X enclosure
- Display/Operation:
- 4‐line display with push buttons
- Configuration via local display and operating tools possible
- Outputs:
- 4‐20 mA HART (active)
- Pulse/frequency/switch output (passive)
- Inputs: Status input
- Digital communication: HART
- Power supply: DC 18 to 30 V
- Hazardous area approvals: ATEX, IECEx, cCSAus
- Other approvals and certificates:
- Metrological approvals and certificates: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
- Pressure approvals and certificates: CRN
- Material certificates: 3.1 material
- Hygienic approvals and certificates: Sanitary approval: 3-A, EHEDG
