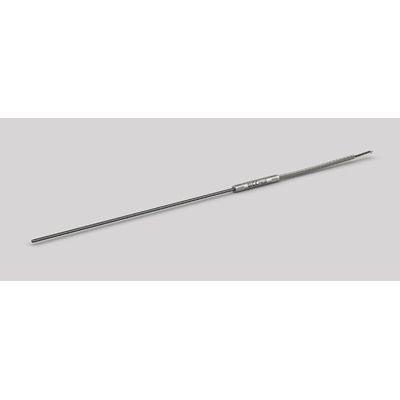

GC-heat - Model GC-sens -Thermal Sensors
The GC-sens thermal sensors and sheathed thermocouples from GC-heat are designed to complement and enhance the functionality of conventional heating elements. They are available in various configurations, ensuring precise temperature control and setting across a wide range of applications. These sensors include insulated thermocouples with features such as FeCuNi (Type J or L) and NiCr-Ni (Type K) options, aligning with standards like DIN EN 60584 and DIN 43 710. The GC-sens line accommodates applications like hot runner nozzles and manifolds, and possesses the flexibility for less common uses. These thermocouples come with a 2,000 mm metal-braided hose connection as standard. Detailed specifications and dimensional options can be accessed in the corresponding product tables. These innovative designs play a crucial role in maintaining temperature accuracy and reliability for sophisticated industrial processes.
The GC-sens thermal sensors and sheathed thermocouples serve to perfectly complement conventional heating elements. Available in various designs, they ensure a perfect setting and control of the temperature. With a range of insulated thermocouples (with moulded head) all the way up to angle thermocouples in the thermocouple combinations: FeCuNi type J or type L and NiCr-Ni type K everything is covered. This doesn't just enable the implementation in applications such as hot runner nozzles (insulated thermocouples) or manifolds (angle thermocouples), even less typical or well-known application areas can be utilized with the GC-sens. Insulated thermocouples are fitted as standard with a 2,000 mm metal braided hose connection. Individual dimensions and other technical data as well as the respective specifications can be attained from the corresponding table.
1 x Fe-CuNi
(Type J, black-white) acc. to DIN EN 60584, standard
1 x Fe-CuNi
(Type L, red-blue) acc. to DIN 43 710, optional
1 x NiCr-Ni
(Type K, green-white) acc. to DIN EN 60584, optional
1 x PT 100 Ohm
acc. to DIN 60751, optional
- With fastening flap (F) made of stainless steel, 15 x 8 mm
- Measuring tip made of stainless-steel, Ø 3.5 mm
- Measuring point soldered, flat
- Measuring point not insulated/grounded, optionally insulated
- Immersion length 30 mm (standard) / 40 mm (optional)
- Working temperature max. 400°C
- With protective glass silk sleeve
- Thermo-leads: glass silk insulated leads, 0.22 mm2, braided metal sleeve with cotton binder, 50 mm open ends, standard connection length 2000 mm
1 or 2 x Fe-CuNi
(Type J, black-white) acc. to DIN EN 60584, standard
1 or 2 x Fe-CuNi
(Type L, red-blue) acc. to DIN 43 710, optional
1 or 2 x NiCr-Ni
(Type K, green-white) acc. to DIN EN 60584, optional
1 x PT 100 Ohm
acc. to DIN 60751, optional
- Measuring tip Ø 6.0 mm (optional) or Ø 8.0 mm (standard)
- Measuring point welded, 118° bore angle, optionally flat
- Measuring point not insulated/grounded, optionally insulated
- Immersion length approx. 15–150 mm
- Working temperature max. 400°C
- Nickel-brass-plated bayonet, ØI 15 mm
- Stainless-steel pressure spring
- Screw-in nipple: Nickel-brass-plated
- Thermo-leads: glass silk insulated leads, 0.35 mm2, braided metal sleeve with cotton binder, 50 mm open ends, standard connection length 2000 mm
1 x Fe-CuNi
(Type J, black-white) acc. to DIN EN 60584, standard
1 x Fe-CuNi
(Type L, red-blue) acc. to DIN 43 710, optional
1 x NiCr-Ni
(Type K, green-white) acc. to DIN EN 60584, optional
- Measuring tip Ø 4.0 mm
- Measuring point soldered, hemispherical
- Measuring point not insulated/grounded, opt. insulated
- Immersion length approx. 12 mm
- Fixing hole Ø 4.5 mm
- Working temperature max. 400°C
- Stainless-steel protective spring
- Thermo-leads: glass silk insulated leads, 0.35 mm2, braided metal sleeve with cotton binder, 50 mm open ends, standard connection length 2000 mm
1 x Fe-CuNi
(Type J, black-white) acc. to DIN EN 61515, standard
1 x Fe-CuNi
(Type L, red-blue) acc. to DIN 43 710, optional
1 x NiCr-Ni
(Type K, green-white) acc. to DIN EN 61515, optional
- Measuring point insulated, optionally bonded to the outer sheath/grounded
- Immersion length on customer’s request
- Bending radius min. 5x outer diameter of sheath leads
- Tip working temperature max. 800°C, connection max. 200°C
- Proof voltage 100 V-DC
- Thermo-leads: glass silk insulated leads, 2 x 0.22 mm²/0.35 mm², braided metal sleeve with cotton tracer thread, 50 mm/80 mm open ends, standard connection length 2000 mm
