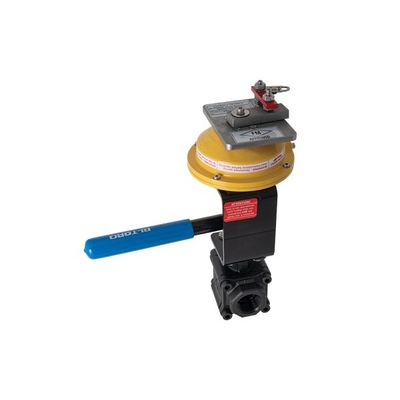

Strahman BI-TORQ - Thermal Shut-Off Fusible Link Packages with Ball Valves
FromStrahman Group
BI-TORQ`s Thermal Shut-Off Fusible Link Packages with Ball Valves are a complete assembly with a class rating of API 607 Fire Safe certification. This series features threaded (NPT) or socket weld (SCKT) connections in valve size 1/2" through 2" with varying lengths and heights (see chart below). We also offer ANSI Class150 flanged connection with full port ball valves available from 1/2" through 6” (2-1/2” -6” have a declutchable gearbox). The valve body is available in Carbon Steel and Stainless Steel.
Most popular related searches
- FM approval on select assemblies; contact our sales office for assistance in specifying the best product for your FM requirements
- Automatic shut-off in case of fire
- API 607 Fire Safe full port ball valves up to 2000 PSI pressure rated
- TFE seats and Graphite seals/packing
- 1/2" through 2” NPT or Socket Weld connections
- Fire safe valve body in Carbon Steel and Stainless Steel
- Ball valves have standard RTFE seats and graphoil body seals suitable for a wide range of media and applications
- Weatherproof spring pack and stainless steel top plate for maximum corrosion resistance
- Valve can still be manually operated even while armed on certain models
- Fusible Links are available from 165°F - 360°F
- Factory assembled and tested
