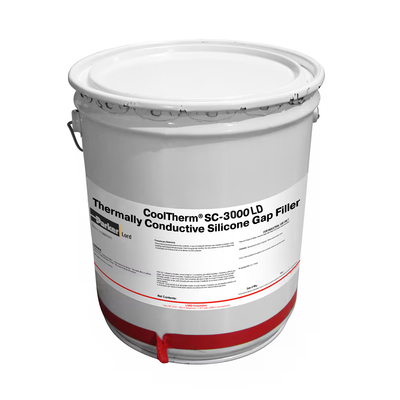

Lord - Model CoolTherm SC-3000 LD -Thermally Conductive Silicone Gap Filler
CoolTherm SC-3000 LD (Low Density) gap filler is a low density, two-component silicone system designed to provide excellent thermal conductivity for electronic applications, while retaining desirable properties associated with silicones.
CoolTherm® SC-3000 LD (Low Density) gap filler is a low density, two-component silicone system designed to provide excellent thermal conductivity for electronic applications, while retaining desirable properties associated with silicones.
Shelf Life/Storage:
Shelf life of each component is six months when stored upon receipt at 5-30°C in original, unopened container. Cartridges should be stored tip down.
CoolTherm SC-3000 LD gap filler evolves minute quantities of hydrogen gas. Do not repackage or store material in unvented containers. Adequately ventilate work area to prevent the accumulation of gas.
- Low Volatility – low volatile content minimizes outgassing.
- Low Stress – exhibits low shrinkage and stress on components as it cures.
- Durable – composed of an addition-curing polydimethylsiloxane polymer that will not depolymerize when heated in confined spaces.
- Environmentally Resistant – provides excellent thermal shock resistance.
- UL Rated – provides excellent flame retardancy; UL 94 V-0 certified.
- Color: Off-White Paste (resin), Pink Paste (hardener), Light Pink Paste (mixed)
- Number of Components: Two-Component (2K)
- Dynamic Viscosity: 110000 cP @ 25°C (resin), 90000 cP @ 25°C (hardener)
- Specific Gravity: 2.4 (resin), 2.4 (hardener), 2.4 (mixed)
- Hardness: 75 Shore 00
- Thermal Conductivity: 3 W/m-K
- Dielectric Strength: 16.8 kV/mm, 427 V/mil
