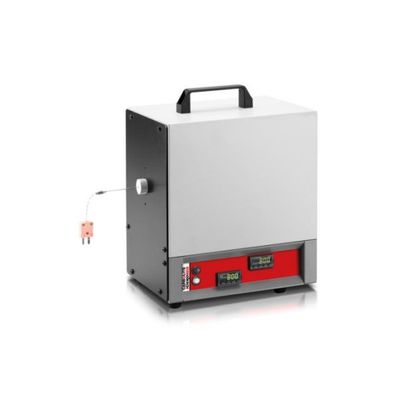

Carbolite - Model PTC 12/20/150 -Thermocouple Calibration Furnaces

SHARE

The PTC thermocouple calibration furnace is designed to provide a high stability portable heat source for the calibration of thermocouples using the comparison method.

Most popular related searches
thermocouple calibrator
thermocouple
furnace
UKAS calibration
digital temperature controller
traceable calibration
UKAS calibration certificate
UKAS
safety testing
UKAS certification
  • High stability heat source with temperature range 400 to 1150°C
  • Accepts thermocouples up to 7.5mm diameter
  • Thermocouple is inserted & compared to the PTC 12/20`s displayed temperature
  • PID temperature control & separate temperature display to 1.0°C resolution
  • The special work tube design provides better temperature uniformity than is typical for a furnace of this size
  • The metallic work tube is earthed for operator safety when testing metal sheathed mineral insulated mineral thermocouples
  • Rapid heat up and stabilisation makes it ideal for use in the laboratory or on site
  • Portable & self contained
  • Factory calibration certificate stating the error between the workspace temperature & the displayed value at 700°C, 900°C, & 1100°C
  • A UKAS traceable calibration certificate for customer defined setpoints is available
  • A UKAS calibrated thermocouple is available
