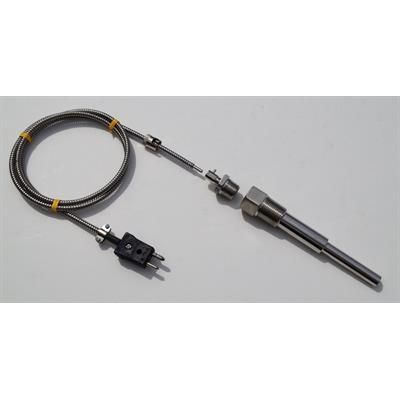

KWIK-BAY - Model 5010-J-36-A12, Style 5010 -Thermocouples & Resistance Temperature Detectors - Adjustable Bayonet

These easy to use, adjustable sensors are specially designed to be adapted to standard Thermowells (.260 bore & larger). Adjustable over entire length of stainless steel flexible armored cable. Eliminates stocking many fixed length probes. Thermocouple (J, K, T, E) or RTD (PT100 Ohms at 0ºC, .00385 TCR) Styles. Variety of Terminations available. Use with TTEC # 5601W Thermowell Adapter. Thermocouple Accuracy: Standard Limits of error per ANSI MC96.1. RTD Accuracy: DIN 43760 Class B. Special Tolerances available. Spring Loaded design maintains firm tip contact with Thermowell bottom. All Sensors are single element. RTD´s are 3-wire type. Factory tested... quality assured.
