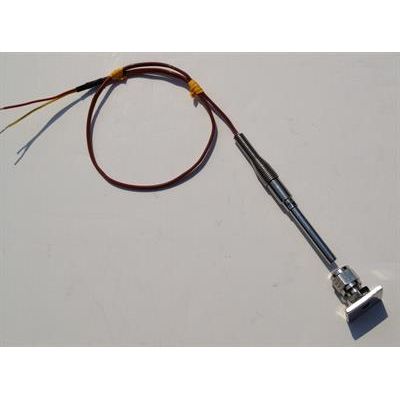

TECPAK - Model 10-6543 -Thermocouples with Compression Weld-In Place Pad

Stainless Steel Compression Weld-In Place Pad allows removal of Thermocouple from Pad. Easily installed: Pad is welded to surface, thermocouple is inserted into pad and secured via compression nut & ferrule. Simplifies Maintenance & reduces costs as Thermocouple Pads remain in position and are re-used when Thermocouples are replaced. Rugged TECPAK MgO Thermocouple with Flat Tip allows for accurate & reliable surface Temperature Measurements. Pads can be Flat or Curved with Stainless Steel or Teflon Ferrules. Ideal for non-intrusive Tank wall, process piping or boiler tube surface measurements. Type K Simplex. Grounded Measuring Junction. .250" O.D. – 316SS Sheath. Flexible Teflon Leads with strain relief spring. Other Terminations & Custom Versions available.
