Laird Thermal Systems - Model RH14-14-10-L1-W4.5 -Thermoelectric Cooler

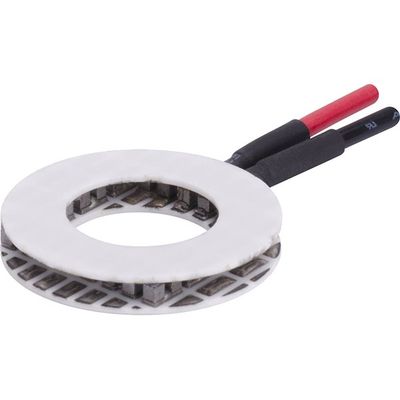

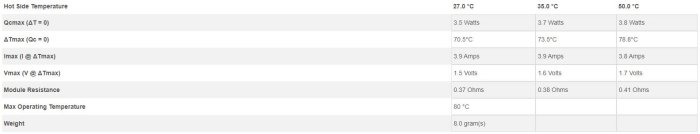

The RH14-14-10-L1-W4.5 is an annular thermoelectric cooler that is round in shape. The hot and cold side ceramics have a circular hole in the center to accommodate light protrusion for optics, mechanical fastening or temperature probe. It has a maximum Qc of 3.5 Watts when ΔT = 0 and a maximum ΔT of 70.5 °C at Qc = 0.
