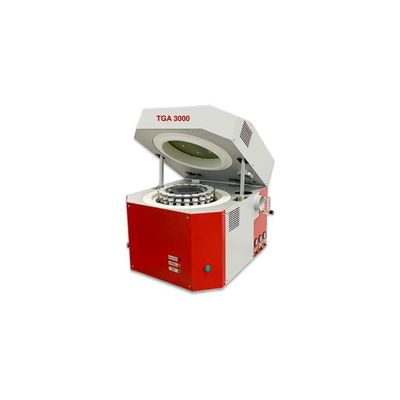

Sylab - Model TGA 3000 -Thermogravimetric Analyzer
Sylab’s TGA 3000 is an automated instrument which determines Moisture content, Ash content, Volatile content, Loss on Ignition (LOI) and Fixed Carbon content in a wide range of Organic, Inorganic and Synthetic materials.
Thermogravimetric analysis replaces the traditional analytical techniques that are slow, labor intensive and involve several steps with multiple laboratory equipment such us muffle furnaces, ovens and balances.
The TGA 3000 with integrated balance combines drying, ashing and weighing processes. This improves the efficiency, precision and provides high sample throughput.
The TGA 3000 is applicable in various industries and applications, including coal, coke, ores, cement, lime, foodstuffs, feeds and many more.
19 position carousel allows for high sample throughput rates
Two TGA 3000’s can be controlled from a single PC, thereby boosting productivity and reducing costs
After completion of analysis, cooling process is automatically started with user programmable furnace lid opening, to improve the cool down time.
Pneumatic carousel control mechanism increases the long-term reliability by eliminating oscillation and increasing position accuracy
Automatic control of furnace atmosphere and programmable gas flow rates (Air, Nitrogen or Oxygen)
High power heating elements provide fast temperature ramping and excellent temperature stability
Embedded multi-element design ensures that temperatures are uniform throughout the furnace chamber
Dual Carousel design provides automatic placement/removal of crucible lids inside the furnace
Automatic end point recognition, user programmable method settings, skipping of empty crucibles allow for optimized analysis time
Insulated balance that is isolated from the heat and ambient atmosphere for stable and precise measurements
High precision balance accurate to 0.1mg for precise weight measurements
- High temperature Furnace
- Uses dual Carousel
- Carousel is made-up of High temperature technical grade ceramic materials
- Complies with all national and international test methods for organic & inorganic samples
- Inbuilt high precision balance
- Windows based operating software
- Ensures precise control and operation of the analyzer
- Tracks the samples and measurement data throughout the analysis process
- Graphic display of temperature vs. weight loss measurements
- Retrieval of sample related information at any given time during analysis
- During analytical cycle, display of current parameters such as the real time furnace temperature, sample status and time remaining
