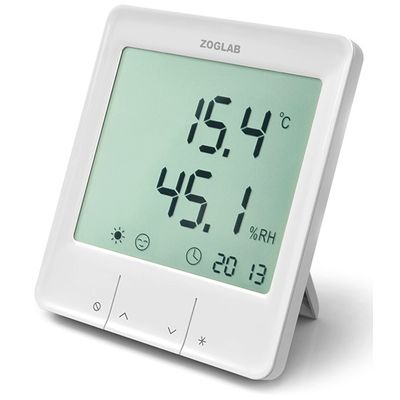

ZOGLAB - Model SMART -Thermohydrometer
Large LCD with wide view angle. Ergonomic design. High accuracy measurement. High or low limit alarm. MAX / MIN / AVG query. Ultra low power design with single AAA battery.
Large LCD with Wide View Angle

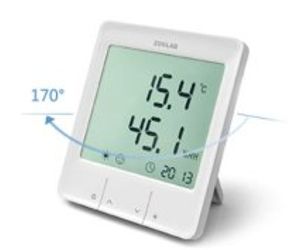

Large FSTN technology LCD display with wide view angle, for much more clearer display, user can read easily even under 170°

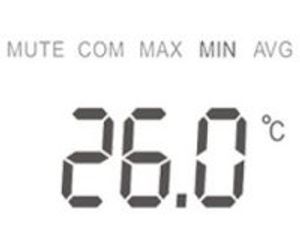

Press “*” to check Max, Min and average values in the past 12 hours.

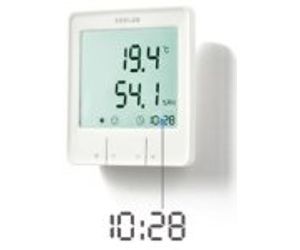

Built-in high accuracy timer, real-time display time, date, year, etc.

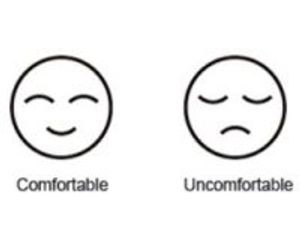

With the optimized SSD algorithm, Smart can indicate human body feeling status in the environment.

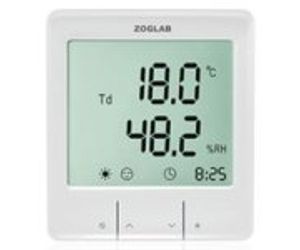

Press "?" 2 seconds, to shift temperature to present dew-point.

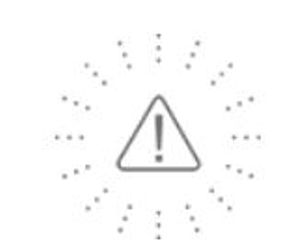

Warning symbol flashes distinctively when high or low limit exceeded.

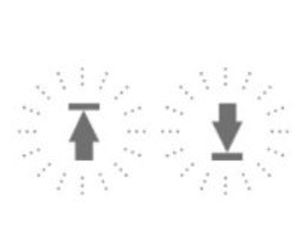

Out-of-limit alarm mark shows up to remind user to handle the event in time.
Measuring Data
- T Measuring Range: -20?~70?
- T Accuracy: ±0.3?(23?±2?), full scale ±0.5?
- T Resolution: 0.1?/0.2?
- RH Measuring Range: 0%~100%RH
- RH Accuracy: ±3%RH(10%~85%RH), other range ±5%RH(Testing Environment 23?±2?),±2%RH(High-precision version)
- RH Resolution: 0.1%RH
General
- Logging Interval: 5s
- Most Value Period: Within 12hrs
- Storage Temperature: -50?~90?
- ESD Protection: ±25KV
- Battery: 1.5V AAA battery
- Battery Lifetime: 360 days(Without alarm)
- Clock Accuracy: <12 mins/year
- Clock Feature: Auto adjustable
- IP Class: IP50
Sensing Probe
- Model: NTC / Capacitive Sensor / Digital Sensor
General Feature
- Dimensions: 95×107.4×18.2mm
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Display Area: 76×68mm
- Weight: 105g
