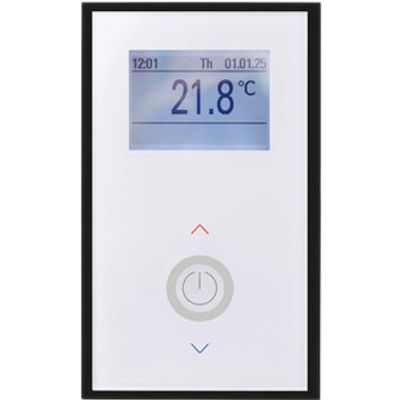

Thermokon - Model JOY HC AO2DO -Room Controller

Room controller temperature | Active, 0..10 V, Switch contact | Room Climate Control, Measure values.

Most popular related searches

Application/type : Room controller
Purpose : Room Climate Control, Measure values
Measured values : temperature
Interface : Active, 0..10 V, Switch contact
Functions : hardware outputs, heating + cooling relay, change-over, integrated PI and two-/three-position controller, frost protection, window/door monitoring, presence, MSG-server for 2nd zone
Operating functions : setpoint adjustment temperature, standby/presence detection
Operating elements : 3 touch buttons
Configuration : uConfig
Output voltage : 0..10 V, to control 6-way control valve
Output switch contact : 2x contact NO, 1x heating, 1x cooling, load max. 500 mA (240 V, Triac)
Input : 1x input for NTC10k or floating contact, 1x input for potential contact (230 V ~), 1x input for floating contact
Operating range temperature (°C) : 0..50
Operating ranges temperature (°C) : 0..+50
Output signal temperature : 0..+50 °C
Operating range humidity : max. 85% rH non-condensing
Accuracy temperature : ±1 K (typ. at 21 °C)
Power supply : 85..260 V ~
Power consumption : max. 3 VA (260 V ~)
Display : LCD 60x44 mm, 240x160 px, backlight cold white
Enclosure : PC, cover glass
Colour : pure white
Protection (IP) : IP30, according to EN 60529
Connection : terminal block, max. 1,5 mm², inputs max. 1,0 mm²
Mounting : in standard EU box (Ø=60 mm, depth min. 45 mm)
Packaging length (mm) : 196
Packaging width (mm) : 162
Packaging height (mm) : 37
Packaging : case packaging
Device length (mm) : 140
Device width (mm) : 78
Device height (mm) : 35
Weight (g) : 195
