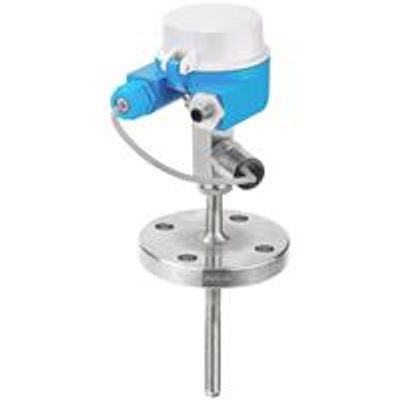

iTHERM ModuLine - Model TM131 -Thermometer
Trend-setting, high modular and robust thermometer for a wide range of industrial applications. RTD or TC assembly complete with manufactured thermowell or to be used with existing thermowell. An optional head transmitter, with all common communication protocols - Bluetooth® technology inclusive, and special features like iTHERM QuickNeck, for tool-free easy recalibration, vibration-resistant and fast-response sensor and thermowell technology (iTHERM StrongSens, QuickSens) as well as hazardous area approvals makes the device ready to use with enhanced measurement accuracy and reliability.
-
Second process barrier with failure indication offering valuable health status information
-
iTHERM QuickSens: fastest response times 1.5 s for optimum process control
-
iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
-
iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration
-
Bluetooth® connectivity (optional)
-
International certification: explosion protection according to ATEX, IECEx, CSA C/US and NEPSI
-
Universal range of application
-
Measuring range: –200 to +1100 °C (–328 to +2012 °F)
-
Pressure range up to 100 bar (1450 psi)
-
Degree of protection: up to IP 68
-
Vibration-resistant sensor elements up to 60g
-
Improved ease of maintenance (sensor replacement without process shutdown), easy and safe recalibration of the measuring point
