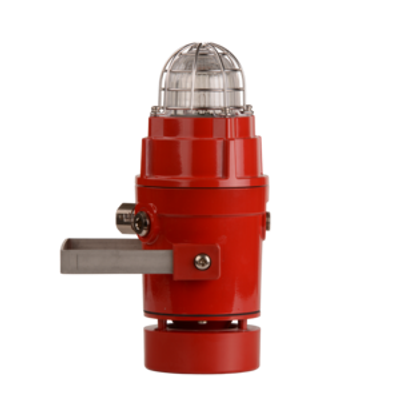

Thermostick - Model D1xC1X05R -110dB(A) Radial Alarm with 5J Xenon Strobe for Explosion Proof Environments
The D1xC1X05R is a compact, globally certified alarm horn sounder designed for hazardous environments. It features an omni-directional horn capable of emitting a 110dB(A) alarm, combined with a 5 Joule Xenon strobe beacon for enhanced visual signaling in emergency situations. Engineered with a robust Type 4/4X, IP66/67 marine grade aluminum enclosure, this device is built to withstand rigorous conditions and is corrosion-proof, ensuring durability and reliability in various industrial settings. It is certified for Class I & II Div 1, Zone 1 & 20, supporting IECEx and ATEX standards for explosion-proof signaling. This makes it suitable for hazardous area applications in sectors like oil and gas, tunnels, and waste treatment facilities, where reliable alert systems are critical for safety. The D1xC1X05R's versatile design and compliance with international safety standards make it a dependable choice for heavy industry operations.
The D1xC1X05R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 5 Joule Xenon strobe beacon. The robust Type 4/4X, IP66/67 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX 1, 2, 21 & 22 explosion proof signalling applications.
Alarm Horn:
- Maximum output: 110dB(A) @ 1 metre [101dB(A) @ 10ft/3m] Class II version: 94dB(A) @ 1 metre [85dB(A) @ 10ft/3m]
- Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 4 [96dB(A) @ 10ft/3m] Class II version: 90dB(A) @ 1 metre [81dB(A) @ 10ft/3m]
- No. of tones: 64 (UKOOA / PFEER compliant)
- No. of stages: 4
- Volume control: Full range
- Effective range: 125m/410ft @ 1KHz
- Voltages DC: 24Vdc (20-28Vdc)
- Voltages AC: 110-120Vac, 220-240Vac
- Stage switching: DC units: negative or positive
- AC units: common supply line
Strobe Beacon:
- Energy: 5 Joules (5Ws)
- Flash rates: Option 1: 1Hz (60 fpm)
- Option 2: 1.5Hz (90 fpm)
- Option 3: Double Strike
- Eff. Intensity: 143 cd* – measured ref. to I.E.S.
- Peak Candela: 46,976 cd* – measured ref. to I.E.S.
- Eff. Intensity: 250 cd – calculated from energy (J)
- Peak Candela: 500,000 cd – calculated from energy (J)
- Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
- Tube life : Emissions reduced to 70% > 5 million flashes
General:
- Safety Integrity Level: SIL1 and SIL2 Route 2H IEC61508 (2010)
- Ingress protection: EN60529: IP66/67
- UL50E / NEMA250: 4 / 4X / 3R / 13
- Enclosure material: Marine grade aluminium LM6 – copper free
- Chromated & powder coated – corrosion proof
- Enclosure colour: Red or Grey, custom colours available on request
- Cable entries: 1×1/2″NPT & 2xM20 – thread adaptors available
- Terminals: 0.5 – 2.5mm² (20-14 AWG) Pluggable, duplicated terminals
- Grounding stud: M5
- Line monitoring: Blocking diode included. EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted
- Enclosure volume: <2 litres
- Installation temp: -55 to +85°C [-67° to +185°F]
- Storage temp: -55 to +85°C [-67° to +185°F]
- Relative humidity: 99%
- Vibration test: 35Hz for a duration 4Hr (UL464)
- Jarring test: 3ft/lb Energy (UL464)
- Impact test: 3x 5lb (UL464)
- Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
- Weight: 4.9kg/10.9lbs
