Bourns, Inc.
Thick Film Chip Resistors
FromBourns, Inc.

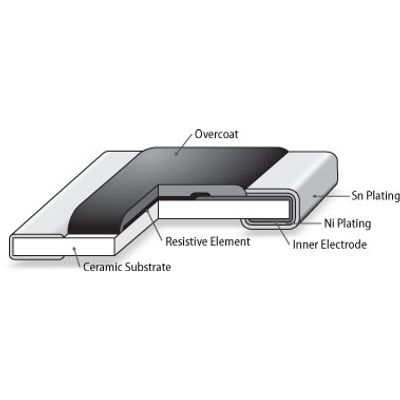

Thick film chip resistors are made of a thick film resistive layer printed onto a ceramic substrate. The thick film resistive layer is a mixture of metal oxides. Surface mount chip resistors have electroplated tin (Sn) outer terminations for board soldering. The resistive element is protected by an epoxy overcoat layer.
Most popular related searches
| Size | 01005 to 2512 (0402 to 6431 Metric) |
| Rated power at 70 °C | 0.03 to 2 W |
| Resistance Range | 0.04 ohms to 20 megohms |
| Resistance Tolerance | 0.5 %, ±1 %, ±5 % |
| Temperature Coefficient | ±100, ±200, ±400 ppm/°C |
| Operating Temperature Range | –55 to +125/155 °C |
- RoHS compliant*
- Suitable for most types of soldering processes
- Standard packaging on paper tape and reel
- Ultra-low lead (Pb) content*
- High voltage
- High power
- Surge withstand
- Sulfur resistant
- Consumer
- Industrial
- Telecom
- Automotive (AEC-Q200 compliant chip resistors only)
