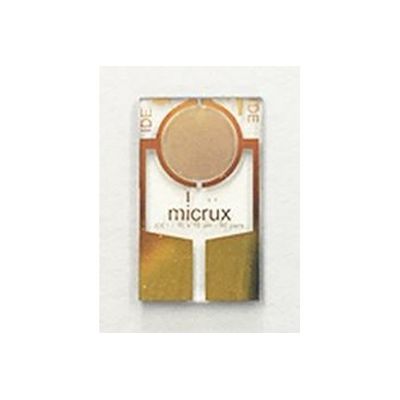

MicruX - Model ED-IDE1-Au (50 units/box) -Thin-film Gold InterDigitated Electrode (10/10 µm)
90 pairs of interdigitated gold electrodes (10/10 µm, electrode/gap). Useful for optical and electrochemical (impedance) studies, spectroelectrochemistry, etc. Compatible with Drop, AIO and Multi8x AIO cell.
Most popular related searches
interdigitated electrode
thin-film electrochemical sensor
electrochemical sensor
conductivity monitoring
conductivity monitoring cell
electrochemistry
micro electrode
conductivity cell
- Dimensions: 10 x 6 x 0.75 mm
- Substrate: Glass
- Insulating layer: EPON SU8 resin
- Electrochemical cell: 3.5 mm Ø
- Electrodes material: Ti / Au
- Electrodes thickness: 50/150 nm
- Microelectrode width: 10 µm
- Microelectrode gap: 10 µm
- Number of fingers: 90 pairs
- Applications: Impedance, capacitance and conductivity measurements, fuel cells
- Contents: 50 units/box
