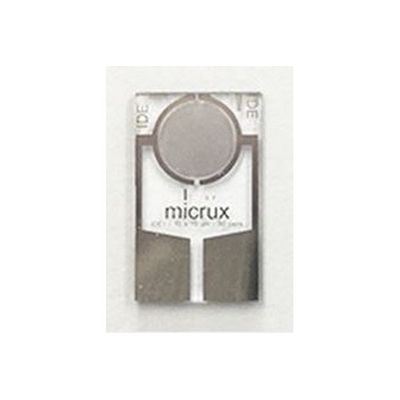

MicruX - Model ED-IDE3-Pt (50 units/box) -Thin-film Platinum InterDigitated Electrode (5/5 µm)
180 pairs of interdigitated platinum electrodes (5/5 µm, electrode/gap). Useful for optics, electrochemistry, scanning electrochemistry microscopy, etc. Compatible with Drop, AIO and Multi8x AIO cell.
Most popular related searches
interdigitated electrode
thin-film electrochemical sensor
conductivity monitoring cell
electrochemical sensor
conductivity monitoring
electrochemistry
micro electrode
scanning microscopy
conductivity cell
microscopy
- Dimensions: 10 x 6 x 0.75 mm
- Substrate: Glass
- Insulating layer: EPON SU8 resin
- Electrochemical cell: 3.5 mm Ø
- Electrodes material: Ti / Pt
- Electrodes thickness: 50/150 nm
- Microelectrode width: 5 µm
- Microelectrode gap: 5 µm
- Number of fingers: 180 pairs
- Applications: Impedance, capacitance and conductivity measurements, fuel cells
- Contents: 50 units/box
