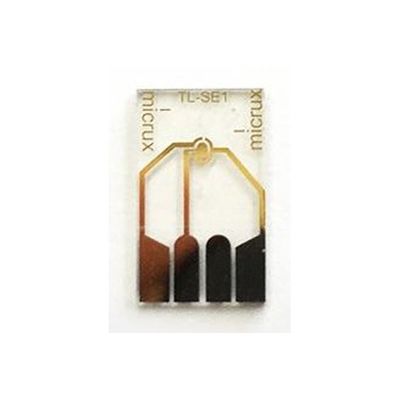

MicruX - Model TL-SE1-Au (20 units/box) -Thin-layer Microfluidic Single Gold Sensor
Three gold electrode approach integrated into a 40-µm height SU8 microchannel. Useful for FIA systems for developing enzyme and immunosensors. Compatible with AIO and Multi8x AIO cell with TL add-ons.
Most popular related searches
microfluidic
microfluidic sensor
electrochemical sensor
chemical sensor
chemical biosensor
immunosensor
electrochemistry
biosensor
nanotechnology
flow sensor
- Dimensions: 10 x 6 x 0.75 mm
- Substrate: Glass
- Microfluidic stage: EPON SU8 resin
- Channel width: 250 µm / 1mm (EC-cell)
- Channel height: 40 µm
- Inlet / outlet: 0.7 mm Ø
- Electrodes material: Ti / Au
- Electrodes thickness: 50/150 nm
- WE size: 0.3 mm2
- Channel volume: 55 nL
- Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors
- Contents: 20 units/box
