EnerSys

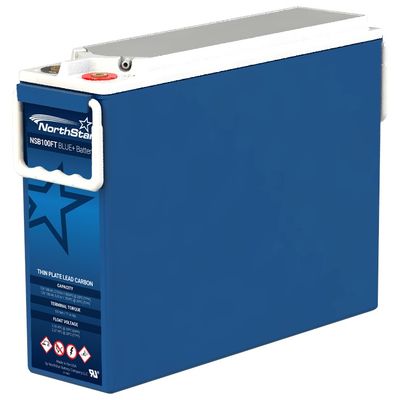

NorthStar - Model NSB 100FT BLUE+ -Thin Plate Lead Carbon Battery
FromEnerSys
The NSB BLUE+ Battery® delivers ultra fast recharge and exceptional PSoC cycling performance.
Most popular related searches
- Exceptional PSoC cyclic performance 2050 cycles @50% DoD
- Design life 12+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Ultra fast recharge
- Shelf life of up to 24 months
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Lead carbon added to negative electrodes increases power and reduces sulfation
- High potential fuel savings when used with hybrid genset applications
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Non-halogenated thermally sealed plastic casing
- Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii)
Terminal: Female M8 x 1.25
Terminal torque: 8.0 Nm (71 in-lbs)
10 hr capacity to 1.80VPC @ 25°C (77°F): 100 Ah
8 hr capacity to 1.75VPC @ 25°C (77°F): 100 Ah
Float voltage @ 20/25°C (68/77°F): 2.28 / 2.27 VPC
Impedance (1Khz): 2.6 mΩ @ 25°C (77°F)
Conductance: 1846 S
Short circuit current: 3500 A
Maximum charge current (A): No Limit
Operation temperature range: -40°C to +65°C
Nominal voltage: 12 V
Height: 11.3 in
Width: 4.2 in
Length: 15.6 in
Weight: 74 lbs
