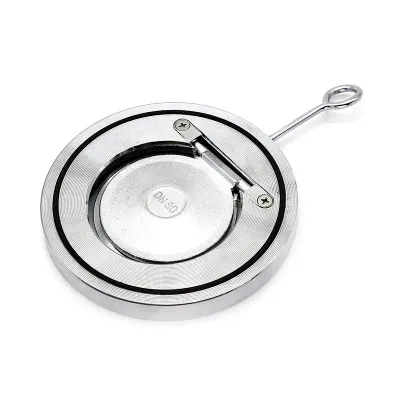

Laizhou Dongsheng Valve Co., Ltd - Thin Single Disc Swing Check Valve

SHARE
The Carbon Steel Thin Type Check Valve is crafted with a carbon steel body and incorporates an NBR O-ring seal. It is designed for use in water, heating, air conditioning, and compressed air systems. This valve is structured to facilitate the flow of fluids by automatically opening under fluid pressure, allowing fluid transition from the inlet to the outlet. However, it prevents backflow by closing when the inlet pressure is less than the outlet pressure, utilizing the fluid pressure difference and the valve's own gravitational force to do so. Tested according to DIN3230 and API598 standards, this valve follows construction standards like ANSI 125/150 and EN1092-2 flanges. It operates efficiently under varying pressure ratings from 1.0Mpa up to 4.0Mpa and can handle temperatures ranging between -20℃ to 180℃ with different elastomers like NBR, EPDM, and VITON. It is suitable for handling various media, including fresh water, seawater, oils, acids, and alkaline liquids.
Most popular related searches
swing check valve
check valve
compressed air system
water heating
air conditioning
compressed air
disc check valve
water conditioning
air valve
backflow
  1. Working pressure: 1.0Mpa/1.6Mpa/2.5Mpa/4.0Mpa
  2. Working temperature:
    1. NBR: 0℃～+80℃
    2. EPDM: -10℃～+120℃
    3. VITON: -20℃～+180℃
  3. Face to face according to DIN, ANSI
  4. Flange according to EN1092-2, ANSI 125/150 etc.
  5. Testing: DIN3230, API598
  6. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.

Carbon Steel Thin Type Check Valve with economical, space-saving spring, it comes with Carbon Steel body and NBR O-ring seal, general used for water, heating, air conditioning and compressed air devices.



  • Available in sizes: 1 1/2" to 24".
  • Temperature range: 0°C to 135°C.
  • Pressure rating: 16 Bar.
  • Low head loss.
  • Space saving design.

For full details please download the technical datasheet.

  • Swing Check Valve
  • Carbon Steel body
  • Wafer Pattern
