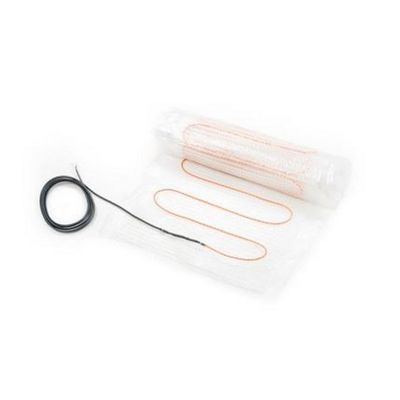

herotec - Model tempusVOLT -Thin Underfloor Heating Mat
For electric underfloor heating in new buildings, renovation of old buildings and renovation: laid directly under the new floor covering, thin underfloor heating mats quickly provide warmth throughout the room with little effort. This is because they can be laid quickly on the existing subfloor without having to prise open the entire floor. Consisting of a thin underfloor heating mat, Digital Design temperature controller (WIFI) and corrugated protective tube.
Thin underfloor heating mat with a PTC resistor for embedding in a levelling compound or tile adhesive. The heating conductor (Ø approx. 3.0 mm), outer sheath PVC with integrated return conductor and protective conductor connection is completely fixed on a self-adhesive carrier braid. The electric thin-bed heating mat is used for heating or tempering enclosed spaces.
- Mains voltage : 230 V
- Power output : 160 W/m²
- Cold connection cable : 4,00 m
- Bending radius min. : 25 mm
- Minimum installation temperature : 5°C
- Calculation width : 0,50 m
- Approval : VDE
