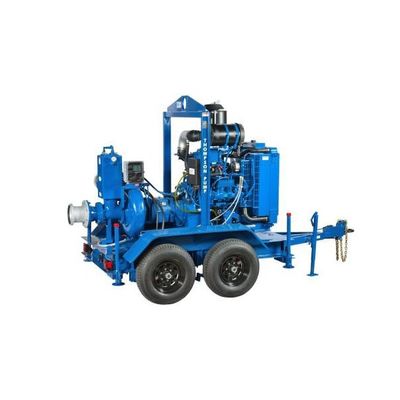

Thompson - Model 6JSVD -6 Inch Vacuum-Assisted Solids Handling Pump
With its heavy-duty cast-iron construction and fast priming capabilities, the Thompson 6JSVD solids handling end suction centrifugal pump leads the industry in construction, industrial and municipal applications. The Thompson 6JSVD is designed for moderate flows up to 1,460 gpm and heads up to 340 feet making it perfect for sewage bypass pumping or general construction dewatering.
Pump Casing
Heavy-duty class 30 ductile iron
Impeller
Dynamically balanced, non-clogging, enclosed, 65-45-12 ductile iron with rear-equalizing vanes to reduce axial loading and prolong seal and bearing life; diameter 14”.
Mechanical Seal
Dry-running, grease or oil lubricated with tungsten carbide rotating and silicon carbide stationary seal faces. Single inside mounted, non- pusher type with self-adjusting elastomeric bellows. Other components are 304 stainless steel and Viton.
Head
Rugged, back pull out design, heavy-duty class 30 cast iron with tapered bore design.
Bearings
Heavy-duty grease lubricated to carry both axial and radial loads.
Bearing Frame
Heavy-duty class 30 ductile iron.
Shaft
SAE 1144 fitted with a 416 stainless steel shaft
